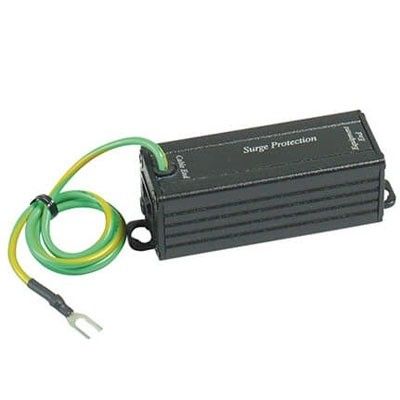

PoE Surge Protector

PoE Surge Protector

https://www.teleeye.com.ph/web/image/product.template/499/image_1920?unique=2fe65ce

• Performs a different function than grounding requirements.
• Protects equipment from high voltage surges from nearby lightning strikes.
• RJ45 Jack to RJ45 Jack.
• Power and signal line protection.
• 10/100 Base-T CAT5e/CAT5e compatible.
• Support Mid-Span PoE and End Span PoE.
• 802.3af and 802.3at PoE (Power over Ethernet) compatible.
• Application for PoE (Power over Ethernet) protection.

• Performs a different function than grounding requirements.
• Protects equipment from high voltage surges from nearby lightning strikes.
• RJ45 Jack to RJ45 Jack.
• Power and signal line protection.
• 10/100 Base-T CAT5e/CAT5e compatible.
• Support Mid-Span PoE and End Span PoE.
• 802.3af and 802.3at PoE (Power over Ethernet) compatible.
• Application for PoE (Power over Ethernet) protection.

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us
Accessories

Product Specification


Surge Protection Attack Time 1 ns
Maximum Surge Voltage 4 KV
Surge Life 30000 surges@4KV
Normal Resistance Across Coax 10,000 MΩ
Surge Resistance Approx. 0Ω
BAND PASS 0~1 GHZ
Insertion Loss Less than 0.2 dB
Return Loss (100 ohms) 16dB
Connectors RJ45
Dimensions mm 85×25.4×25.4 mm
WEIGHT 80g
