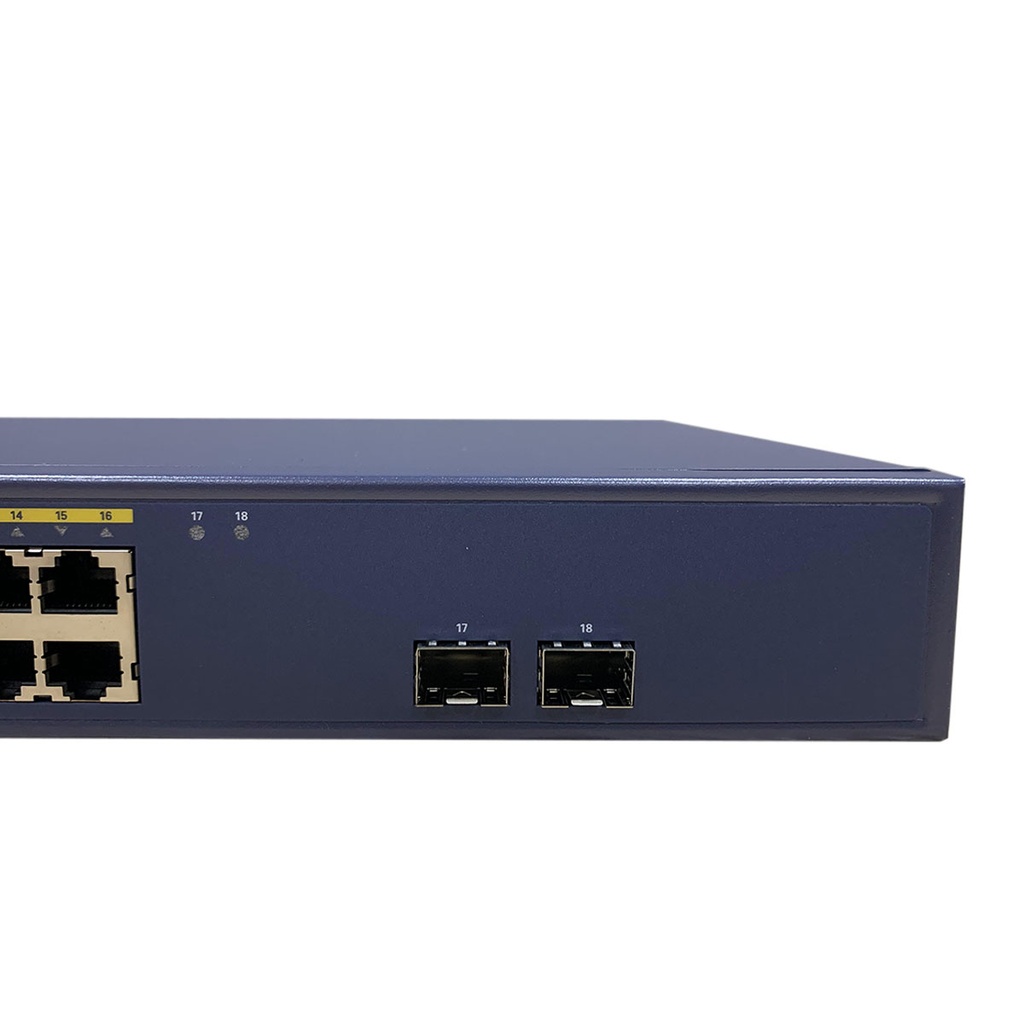

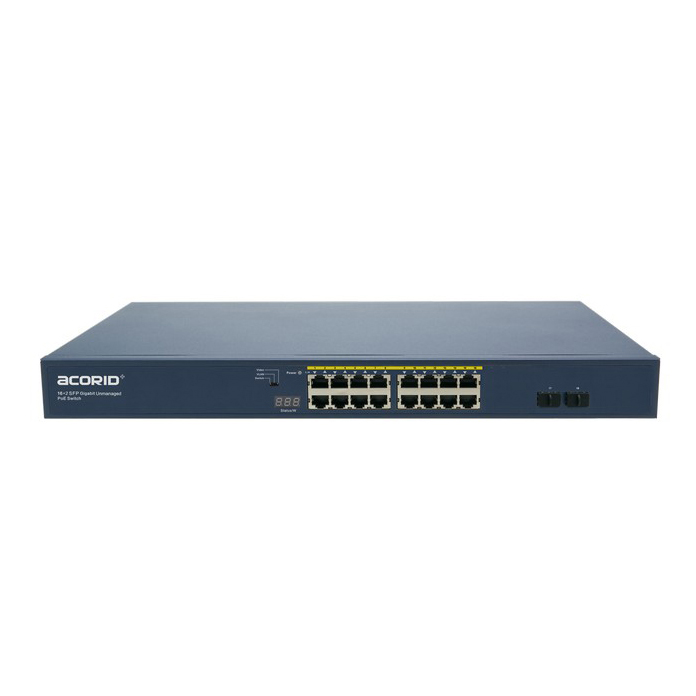

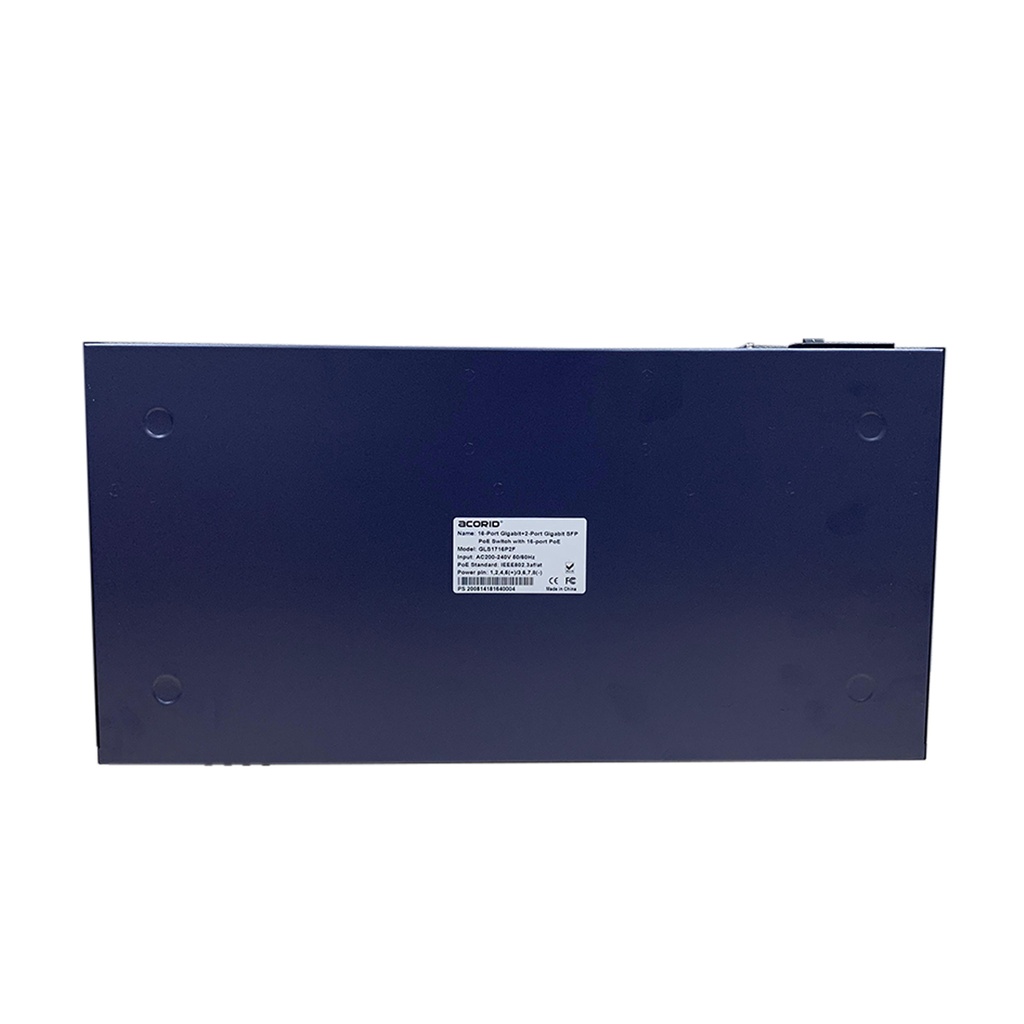

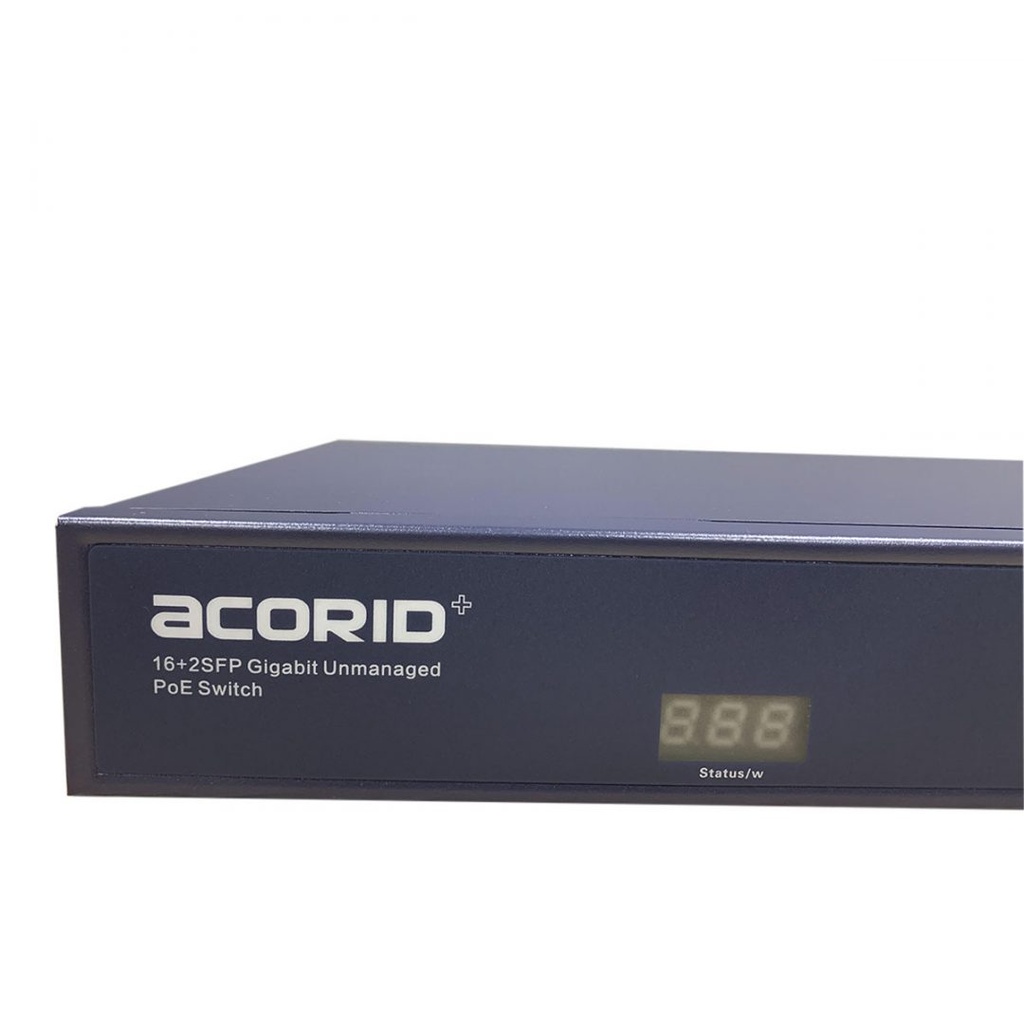

GLS1716P2F PoE Switch

https://www.teleeye.com.ph/web/image/product.template/198/image_1920?unique=b648b0f

• 16 PoE GE port x 2*SFP Gigabit
• Power: 150W ( 250W Optional)
• Digital display of real-time POE power consumption
• Auto-correct and Restart IPC (other PDs) via the gateway

This product is no longer available.


Product Specification


PoE port Port 1-16: 10/100/1000 Mbps PoE
Uplink Portal Port 17-18: Gigabit SFP Slots
POE Source Power Budget 150W(250W Optional)
Maximum PoE Output per port 30W
Bandwidth Backplane 36Gbps
Forwarding packet speed 26.78Mpps
MAC address 8k
Transmission model Storage and forwarding
Power supply AC 100~240V, 50/60Hz
Led Indicator PWR/ Link/Act Source (source quote), 1~16Link/Act (link/activity quote)
Transmission model IEEE802.3x Full-duplex and Backpressure half-duplex
Network standards IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX, IEEE802.3ab 1000 BASE-T, IEEE802.3z 1000 BASE-T, IEEE802.3x Flow Control, IEEE802.3af Power over Ethernet, IEEE802.3at Power over Ethernet
Dimension 440mm(L) * 220mm(W) * 44mm(H)
Cable Requirements UTP cat 5 or higher
Operating temperature -10°C~45°C,
Operating humidity 10%~90%
Storage temperature -20°C~70°C,
Storage humidity 5%~95%
