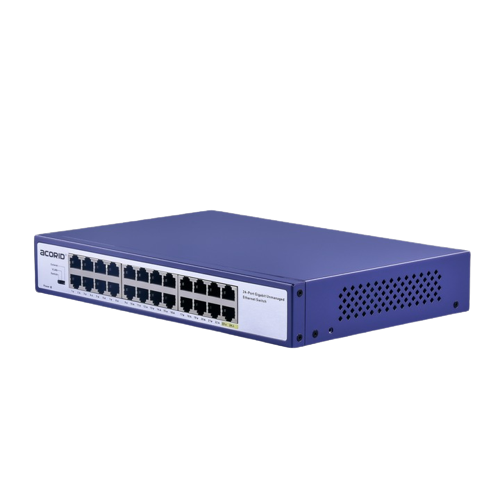

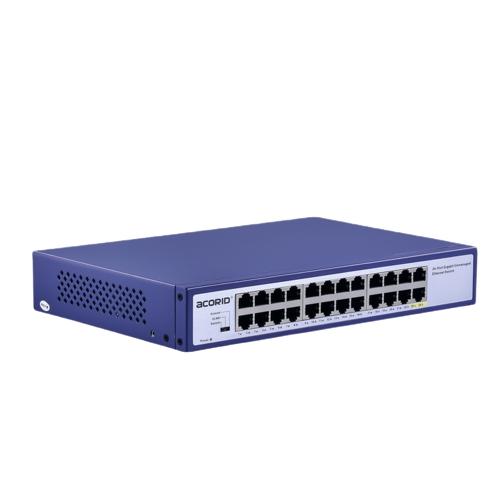

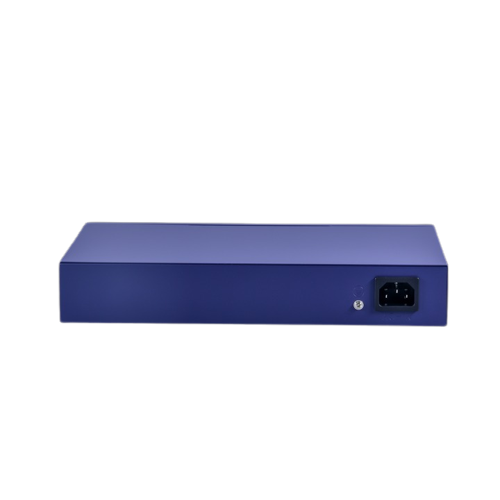

Acorid LS24GD Ethernet Network Switch 24 PORT GIGABIT SWITCHES

https://www.teleeye.com.ph/web/image/product.template/368/image_1920?unique=3eab12f

• 24*Gigabit Ethernet ports (10/100/1000Mbps)
• Support MAC address self-learning, Auto Negotiation
• Supports MDI/MDIX, full duplex and half duplex mode
• Bandwidth: 48Gbps
• 11-inch, 1U rack mount
• Supports 3 modes: Standard Switch, VLAN, EXTEND

This combination does not exist.

Contact Us

Product Specification


Ports description 1-24 ports: 10/100/1000Mbps RJ45
Backplane Bandwidth 48Gbps
Packet forwarding rate 35.71Mpps
MAC address 8k
Processing types Store and forward
Power Supply AC 100~240V, 50/60Hz
LED indicators Power (power indicator), Link/Act (link/activity indicator)
Transmission mode IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
Network standard IEEE802.3i 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE802.3az EEE,IEEE802.3x Flow Control
Dimensions 282mm(L) * 178mm(W) * 44mm(H)
Cable Requirements UTP cat 5 or above
Operating temperature: -10℃~45℃,
Operating humidity: 10％~90％
Storage temperature: -20℃~70℃,
Storage humidity: 5％~95％
