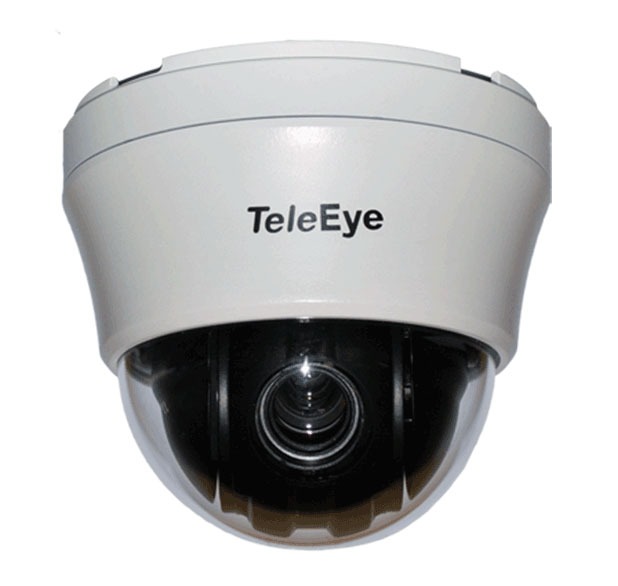

TeleEye AF5010 1080p Mini Speed Dome

•1/3” 2MP Sony CMOS Sensor
•10x Optical Zoom
•Resolution: 1080p
•128 presets, 4scans, 4tours,
•4patterns
•OSD menu
•COC, Pelco-P/D

This combination does not exist.

Product Description

MODEL	AF5010
IMAGE SENSOR	1/3” 2MP Sony CMOS Sensor
RESOLUTION	1080p
MINIMUM ILLUMINATION	Color: 0.5lux, BW: 0.1lux
LENS	10x optical zoom f =5.1mm-51mm
ANGLE OF VIEW	55.2°(Wide) to 3.2°(Tele)
S/N RATIO	≥52dB
VIDEO OUTPUT	1080p AHD / CVBS
OSD MENU	Built-in
VIDEO SETTING	Sharpness, Brightness, D-WDR, WB, NR, BLC, AGC
D/N MODE	Manual / Auto
AF MODE	Auto / keyauto / Manual
IRIS	Auto
OPERATION ANGLE	Pan 0°~360° with continuous rotation; tilt 0°～90°
MANUAL SPEED	Pan: 0.1°～300°/s; Tilt: 0.1°～200°/s
PRESET	128 Presets
SCAN	355° programmable, 4 scans
TOUR	4 tours, and speed & park time of presets can be set.
PATTERN	4 patterns, and each record time is not less than 180s
PROTOCOLS	Pelco-P/D / COC(AHD 1080p)
COMMUNICATION	RS485 (Baud rate 2400 / 4800 / 9600 / 19200bps)
VOLTAGE	12VDC
MAX. RATING	5W
ENVIRONMENT AMBIENT TEMPERATURE	-10℃～+50℃
PROTECTION GRADE	Indoor dome, TVS lightning protection, surge protection and voltage transient protection
WEIGHT	1.3kg
