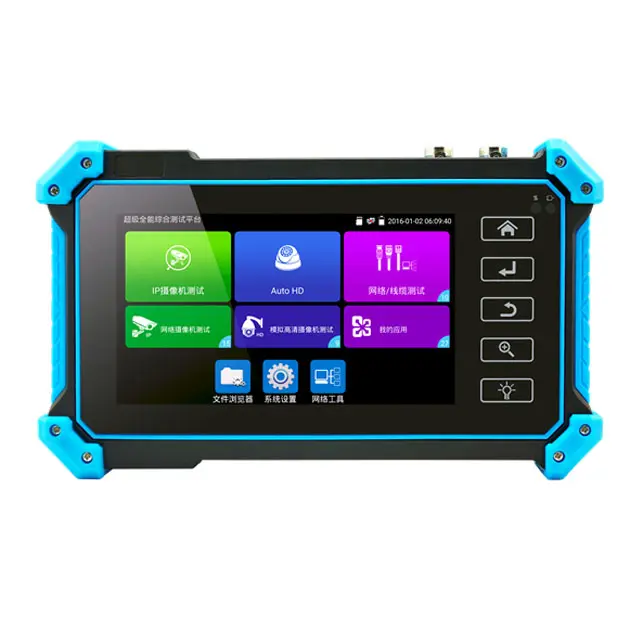

Camera Test Monitor

Camera Test Monitor

https://www.teleeye.com.ph/web/image/product.template/485/image_1920?unique=036af75

• 3.5 inch TFT-LCD touch screen, 480 x 320 resolution
• Built-in WiFi, 10/100M Lan Port
• AHD / CVI / TVI camera test
• Support ONVIF camera test
• Support more than 70 customized IP camera private protocols, such as COP, DAHUA, SAMSUNG, and HIKVISION camera
• Support mobile client of the IP camera
• Display IP camera image by its genuine resolution, support 4K
• ONVIF PTZ control / Video record and playback / Snapshot / 4xZoom the image display / PTZ control
• Video level meter, PEAK level, SYNC level, and color burst measurement
• Output color bars and the testing image of the Digital / Analog camera
• Support 4K HD video and MKV media files play etc
• PING, IP address scan, Port finder, and link test, etc
• Audio in/out, recording and storage
• Lithium-Ion Polymer Battery, working time lasts 8 hours

• 3.5 inch TFT-LCD touch screen, 480 x 320 resolution
• Built-in WiFi, 10/100M Lan Port
• AHD / CVI / TVI camera test
• Support ONVIF camera test
• Support more than 70 customized IP camera private protocols, such as COP, DAHUA, SAMSUNG, and HIKVISION camera
• Support mobile client of the IP camera
• Display IP camera image by its genuine resolution, support 4K
• ONVIF PTZ control / Video record and playback / Snapshot / 4xZoom the image display / PTZ control
• Video level meter, PEAK level, SYNC level, and color burst measurement
• Output color bars and the testing image of the Digital / Analog camera
• Support 4K HD video and MKV media files play etc
• PING, IP address scan, Port finder, and link test, etc
• Audio in/out, recording and storage
• Lithium-Ion Polymer Battery, working time lasts 8 hours

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us
Accessories LED Test Kit


Display 3.5 inch Capacitive touch screen, resolution 480 x 320
Network port 10/100M auto adapt, RJ45
AHD/CVI/TVI Camera test Support resolution 720p 25fps, 30fps, 50fps, 60fps / 1080P 25fps, 30fps, camera OSD menu control over coaxial cable (optional)
WIFI Built in WiFi, speeds 150M, display wireless camera image
IP camera ONVIF, COP, ACTi, Dahua, Hikvision, Samsung, Honeywell & etc.
Video input/output 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
Video Level Test Video signals measured in IRE or mV
Zoom Image Support Analog camera and IP camera image zoom /move
Snapshot, Video record and playback Image Screen snapshot, record, save, view and record and play back
12V/1A power output Output DC12V/1A power for camera
Audio Test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
PTZ control Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
Video Signal Generator Output one channel PAL/NTSC color bar video signal for testing monitor or video cable. (red, green ,blue, white and black color )
Color bar generator Local side PC can login the tester, send the signal by network, test network connection communication whether normal
UTP Cable tester Test UTP cable connection status and display on the screen. Read the number on the screen
Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal
Network test IP address scan, link test, Ping test, Quickly search the connection IP camera and other device’s IP address
PoE test Measurement PoE switch or PSE power supply voltage and cable connection status
External power supply DC 5V(1.5A )
Battery Built-in 3.7V Lithium polymer battery, 3500 mAh
Rechargeable After charging 3~4 hours, normal working time 8 hours
Operation setting Capacitive touch screen, OSD menu, Chinese/English
Auto Off 1-30 (mins)
Working Temperature -10°C~+50°C
Working Humidity 30%~90%
Dimension (WxHxD) 194 x 112 x 48mm
Weight 540g
