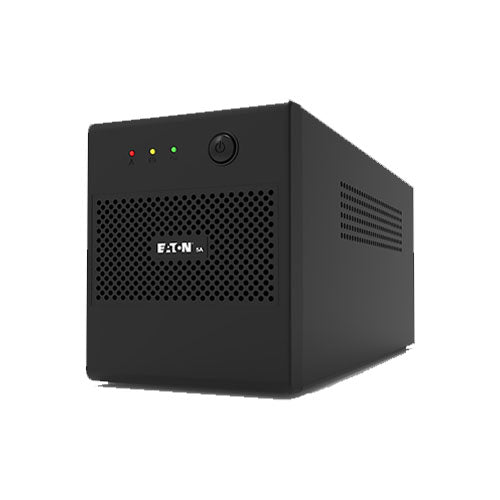

Eaton 5A1500I UPS

Model: Eaton 5A1500I‑NEMA

Type: Line‑Interactive UPS with Automatic Voltage Regulation (AVR)

Power & Output:

• Capacity: 1500 VA / 900 W
• Output Voltage: 230 V AC
• Waveform (Battery Mode): Stepped sine wave
• Transfer Time: ~2–6 ms typical, up to ~10 ms max

Input:

• Input Voltage Range: 140–300 VAC
• Frequency: 50/60 Hz auto‑sensing

Battery:

• Type: 2 × 12 V / 7 Ah sealed lead‑acid
• Recharge Time: ~4–6 hours (to ~90 %)

Outlets & Protection:

• Sockets: 6 Universal / NEMA outlets (battery backup + surge)
• Surge Protection: Yes
• Circuit Breaker Protection: Yes
• Generator Compatible: Yes

Indicators & Controls:

• LED status indicator
• On / Off switch

Physical:

• Form Factor: Tower
• Dimensions: ~370 × 138 × 165 mm
• Weight: ~10.85 kg
• Warranty: ~2 years (varies by seller)

Key Features:

• 1500 VA / 900 W capacity backup for PCs, networking gear, and peripherals.

• Line‑Interactive with AVR stabilizes voltage without using battery for minor fluctuations.

• Wide input range: 140–300 V AC handles unstable mains.

• 6 universal/NEMA outlets battery backup + surge protection.

• Cold‑start capable can start on battery without mains.

• Surge & overload protection circuit breaker included.

• Stepped sine wave output standard for general electronics.

• LED indicators quick power/battery status.
