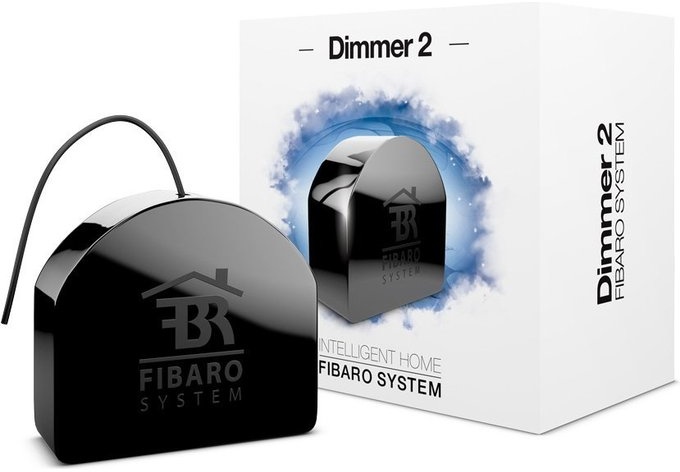

Fibaro Dimmer 2

Amazing Dimming Modes

The FIBARO Dimmer 2 is a radio-controlled, light-dimming module designed to work with light sources of any
type. It senses type of lightning and automatically matches the best control mode. The device provides information about energy consumption and enables to turn light switch into the scene activating button.
FIBARO Dimmer 2 has advanced safety solutions protecting the module from overload, overheat and brownout.

Technical Data:

•  Power source 230V +/- 10%, 50Hz
•  Output power: 50-250W (resistive load) • Rated load current: 0.25A – 1.1A
•  Overcurrent protection: required external 10A circuit breaker
•  Ambient temperature: 0o C – 35o C • To be mounted in standard wall switch boxes Ø ≥ 50mm
•  Radio protocol: Z-Wave Plus • Radio frequency: 868.42 MHz or 869.85 MHz EU; 908.4 MHz or 916 MHz US; 921.4 MHz or 919.8 MHz ANZ; 869 MHz RU;
•  Outside dimensions (L x W x H): 42.5 x 38.25 x 20.3mm
•  Compliant with EU directives: RoHS 2011/65/EU, LVD 2006/95/EC, EMC 2004/108/EC, R&TTE 1999/5/EC

Features

• Compatible with any Z-Wave or Z-Wave+ Controller
• Advanced microprocessor control
• Implemented algorithm of smart light source detection
• Auto-adjustment of the appropriate control mode to connected load
• Active power and energy metering functionality
• Soft start function
• Memory of the last lighting level settings
• Works with various types of switches – momentary, toggle, three-way, etc.
• Active element: semiconductor electronic switch
• To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable regulations
• FGD-212 is an extension unit
