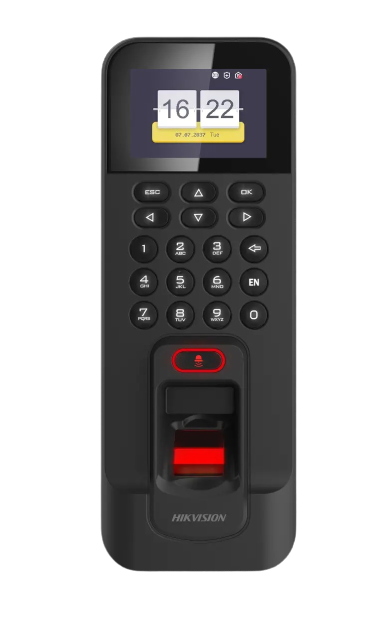

Hikvision DS-K1T804AMF Value Series Fingerprint Access Terminal

Hikvision DS-K1T804AMF Value Series Fingerprint Access Terminal

https://www.teleeye.com.ph/web/image/product.template/369/image_1920?unique=fc05f72

• Standalone access control fingerprint terminal
• LCD display screen
• 3,000 fingerprints, 3,000 cards and 100,000 events storage
• Built-in card reader for Mifare1 card
• Communication via TCP/TP and Wi-Fi
• RS-485, wiegand interface
• EHome for public network communication
• Alarm input and output interface
• Multiple time attendance status

• Standalone access control fingerprint terminal
• LCD display screen
• 3,000 fingerprints, 3,000 cards and 100,000 events storage
• Built-in card reader for Mifare1 card
• Communication via TCP/TP and Wi-Fi
• RS-485, wiegand interface
• EHome for public network communication
• Alarm input and output interface
• Multiple time attendance status

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us

Product Specification


Communication Interface TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)
Working Temperature -10 ° C to 55 ° C (14 ° F to 131 ° F)
Power Supply 12 VDC/2 A
Audio 1 Buzzer and 1 Loudspeaker
LED Indicator Power/Status (Red/Green)
LCD Screen 2.4-inch (320 × 240 LCD-TFT Display Screen)
Fingerprint Capacity Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
Storage Up to 3000 Valid Cards;Up to 100,000 Event Records; Up to 150,000 Attendance Records
Card Reading Mode Not Support
Input Interface Exit Button × 1, Door Sensor × 1 and Alarm Input × 1
Output Interface Relay (Lock Output) × 1, and Alarm Output × 1
Operating System Linux
Fingerprint Comparing Mode 1:1 and 1:N, N=3000
Card Reading Response Duration < 1 s
Fingerprint Authentication Duration < 1 s
FAR(False Accept Rate) ≤ 0.001 %
FRR (False Rejection Rate) ≤ 0.01 %
Fingerprint Recognizer Optical Fingerprint Recognizer Module
External Card Reader Standard Wiegand26/34
Card Reading Distance 0 to 5 cm
Keyboard Keyboard (Back Light)
Reset Key × 1
Wi-Fi Support
Wiegand Interface Output: Wiegand 26/34;Input: Wiegand 26/34
Transmission Rate TCP/IP: 10/100Mbps, Self-adaptive;RS485: 19200 bps-N-8-1
USB USB 2.0; Type A
