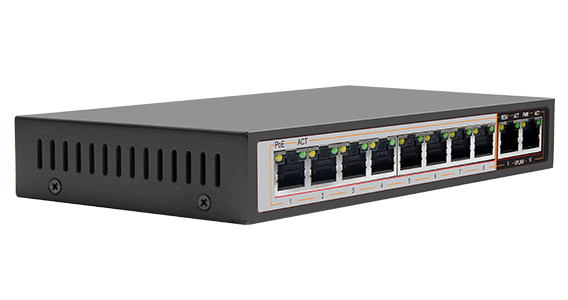

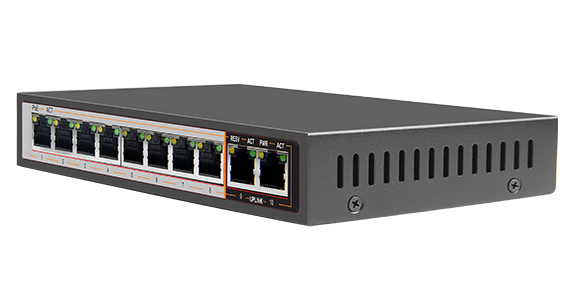

Hored AI1010G 10-port Gigabit AI PoE Switch

https://www.teleeye.com.ph/web/image/product.template/196/image_1920?unique=8b3273d

• AI Smart POE Switch, 8x 1000Mbps RJ45 port( POE is available), 2x 1000Mbps Uplink.Support the management of Apollo cloud.

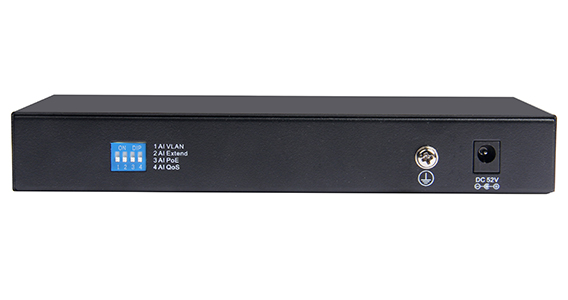

• 5 working modes:
• Standard switching mode: All ports communicate freely;
• AI VLAN: Avoid the internet storm and enhance the network ability;
• AI Extend: Extend 250M transmission;
• AI PoE: Automatic self checking, reboot the device while find it fake dead;
• AI QoS，Video data first, more fluent transmission

This combination does not exist.

Contact Us
Hored Network Switch PoE Switch

Product Specification

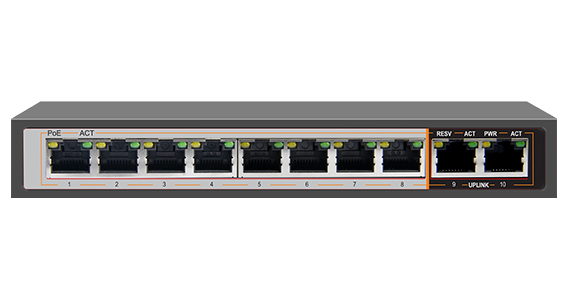

Network Port 8 10/100/1000Mbps PoE RJ45 port (port 1～port 8), 2 10/100/1000Mbps non-POE RJ45 port(port 9~port 10)
Transfer Rate 1000Mbps full Duplex,
Network protocol and standard IEEE802.3i、IEEE802.3u、IEEE802.3x, IEEE802.3ab,IEEE802.3af IEEE802.3at
Bandwidth 20Gbps(no block）
Frame filtering and transmission rate 10M port maximum 14,880pps, 100M port maximum 148,810pps. 1000M port maximum 1，488，100pps
LED indicator Power, LINK/ACT, RESV
POE Pin 1/2(+)，3/6(-)
Max. output power single port 30W
Max Power supply 96W
Size (LxWxH 184mm*94mm*27mm
Weight 0.5kg
Operating Temperature 0°~40°C
Operating Humidity 10%~90%，Non-condensing
Safety regulations CE/ROHS/FCC/CCC
