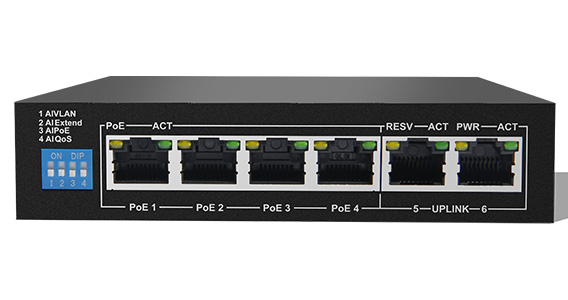

Hored AI106 6-Port 100Mbps AI PoE Switch

Hored AI106 6-Port 100Mbps AI PoE Switch

• AI Smart POE Switch,4*100Mbps RJ45 port(POE is available),2*100Mbps Uplink.Support the management of Apollo cloud.
• 5 working modes:
• Standard switching mode:All ports communicate freely;
• AI VLAN:Avoid the internet storm and enhance the network ability;
• AI Extend:Extend 250M transmission;
• AI PoE:Automatic self checking, reboot the device while find it fake dead;
• AI QoS:Video data first, more fluent transmission.

This combination does not exist.

Hored Network Switch PoE Switch

Product Specification

Network Port	4 10/100Mbps PoE RJ45 port ( Port 1~ port4) 2 10/100Mbps RJ45 port uplink(Port5~port6)
Transfer Rate	100Mbps full Duplex，10 or 100Mbps Half Duplex
Network protocol and standard	IEEE 802.3i、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af, IEEE 802.3at
Bandwidth	1.2Gbps (no block)）
Network delay（100 to 100Mbps):	maximum 20 μs (using 64 byte packet)
Frame filtering and transmission rate:	10M port maximum 14,880pps, 100M port maximum 148,810pps
LED indicator	Power, RESV, LINK/ACT
POE pin	1/2(+)，3/6(-)
Max power for single port:	30W
External power adapter:	60W
Dimensions Size（LxWxH)	125mm x 75mm x 27mm
Weight	0.5kg
Operating Temperature	0°~40°C
Operating Humidity	10%~ 90%，Non-condensing
Safety regulation	CE/ROHS/FCC/CCC
