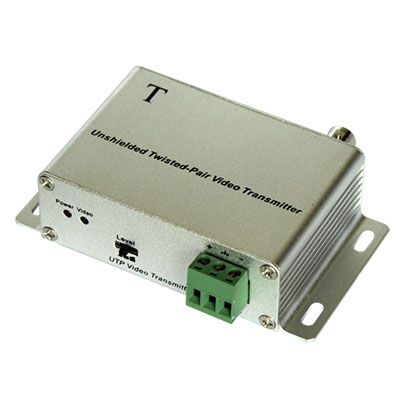

HY-111T Single Channel Transmitter

HY-111T Single Channel Transmitter

• Video format: NTSC, PAL, SECAM
• Maximum input 1Vp-p
• Wire Type: UTP(22~24) AWG
• Wire Category: CAT2 ~ CAT6

This combination does not exist.

Accessories

Product Specification

Video Range	with Active Transmitter 2000mtrs/6560ft
Video Format	NTSC, PAL, SECAM
Maximum Input	1Vp-p
Insertion loss	0.3dB per pair from 20kHz~8Mhz
Frequency Response	DC to 8MHz
CMMR	60dB, 20kHz~8MHz
Wire Type	UTP(22~24) AWG
Wire Category	CAT2~CAT6
BNC Connection	Nickel Plated
Coax	75Ω@1MHz
RJ45	100Ω@1MHz
Power Input	1A@DC12V
Differential Capacitance	19pF/ft max (62pf/m max))
Operating Temperature	-14~140°F (-10 ~ 60°C)
Storage Temperature	-22~140°F (-30 ~ 60°C)
Humidity Range	0~95%, non-condensing
