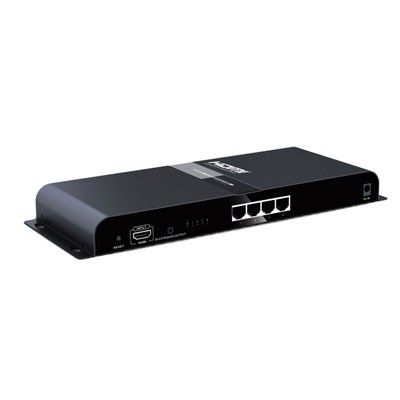

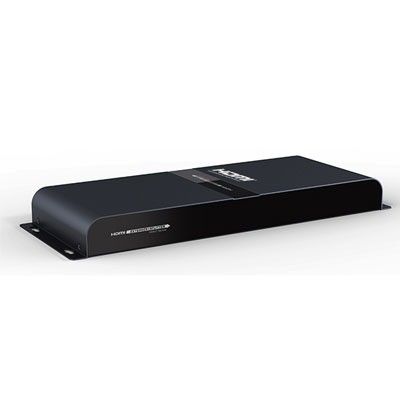

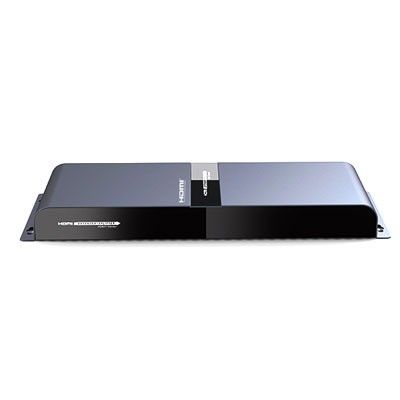

LKV314-4K-HDbitT HDMI Splitter

https://www.teleeye.com.ph/web/image/product.template/491/image_1920?unique=fc05f72

• Incorporates HDbitT technology
• Compatible with HDMI & HDCP

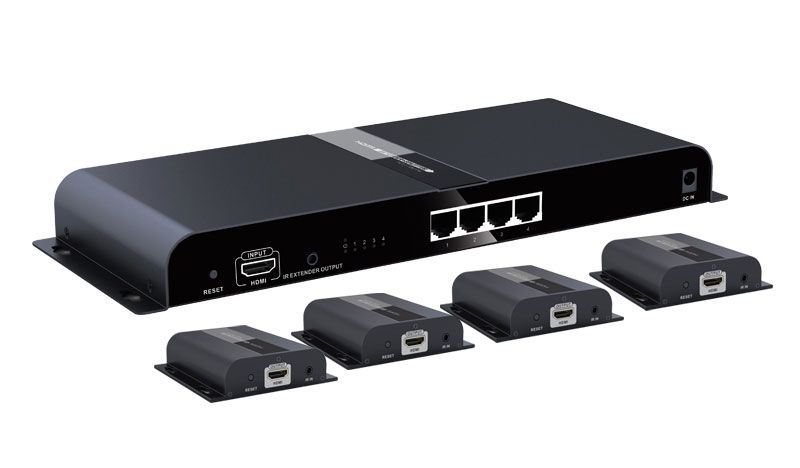

• Distributes 1 HDMI source to 4 displays over CAT5/5e/6 cable
• Supports resolutions from 480i@60Hz to 1080p@50Hz/60Hz
• Supports transmission distances up to 394 feet(120 meters) through CAT6 cable
• With Infrared control signal passing through function

• Incorporates HDbitT technology
• Compatible with HDMI & HDCP
• Distributes 1 HDMI source to 4 displays over CAT5/5e/6 cable
• Supports resolutions from 480i@60Hz to 1080p@50Hz/60Hz
• Supports transmission distances up to 394 feet(120 meters) through CAT6 cable
• With Infrared control signal passing through function

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us
Accessories

Product Specification


HDMI Signal Compatible with HDCP
Transport Protocol HDbitT
Support Resolution 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Transmit Distance Up to 120meters transmission distance for 1080p 60Hz full HD over single CAT6
IR Signal Support 20~60kHz IR device
Input 1 x HDMI
Output 4 x RJ45
Connection indicator LEDs 4 x LED
Working temperature 0℃ ～ 60℃
Power supply DC12V/3A
Power Consumption <24W
Dimension 299(W) x 110.7(D) x 29.6(H) mm
Weight 430g
Color Black
