HDMI Extender

https://www.teleeye.com.ph/web/image/product.template/495/image_1920?unique=ce9d936

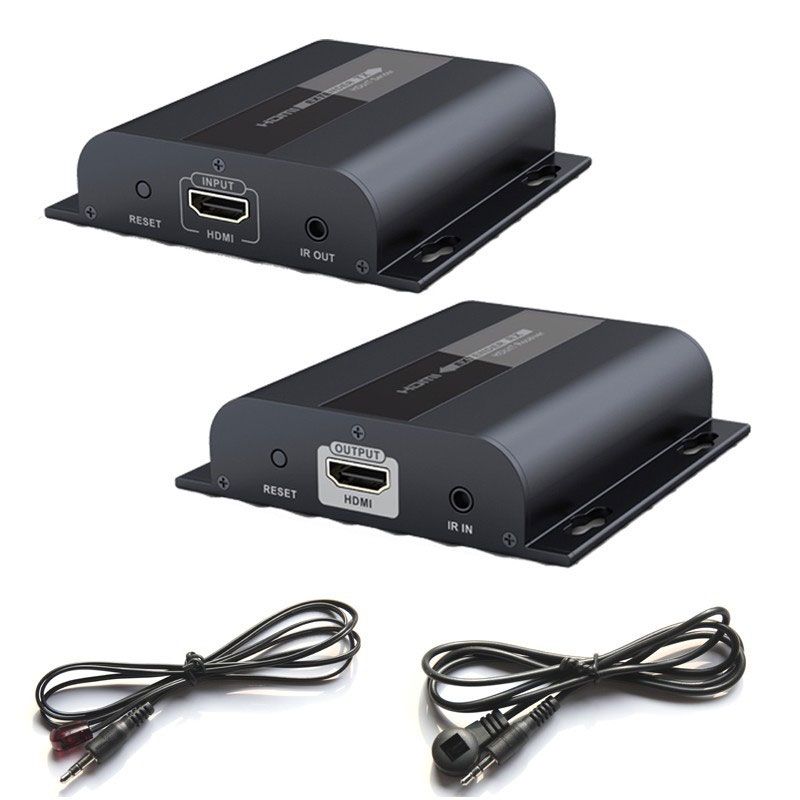

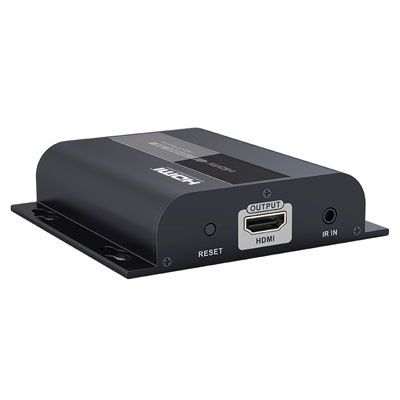

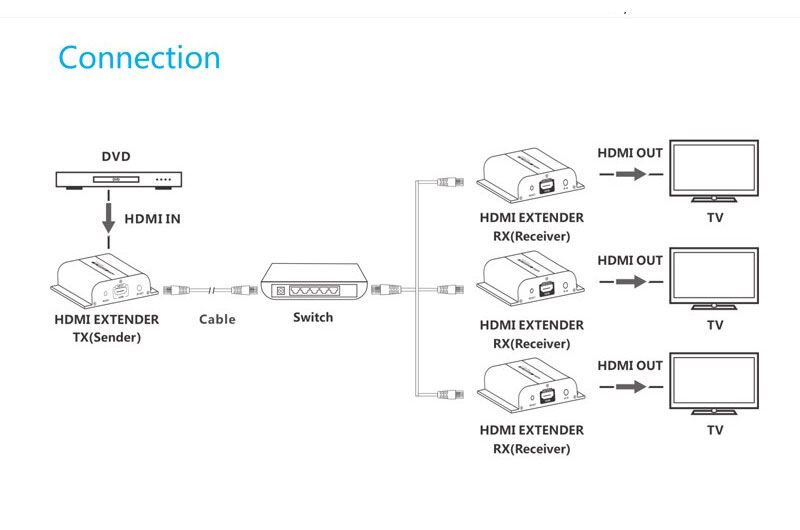

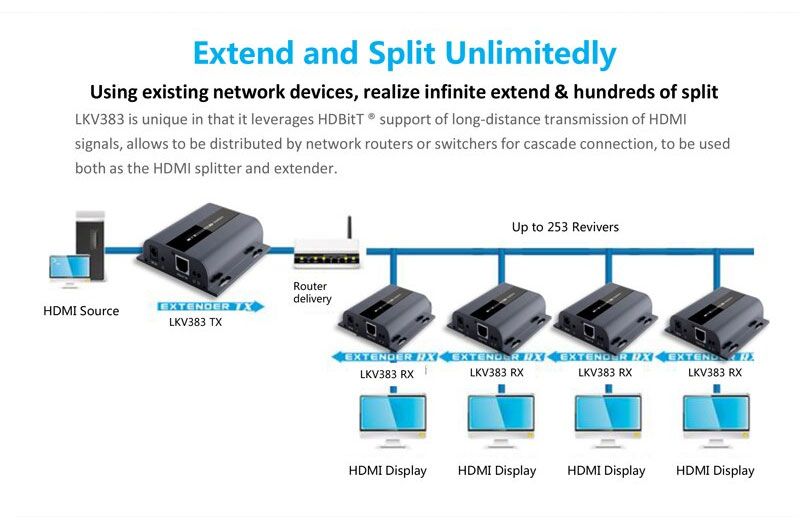

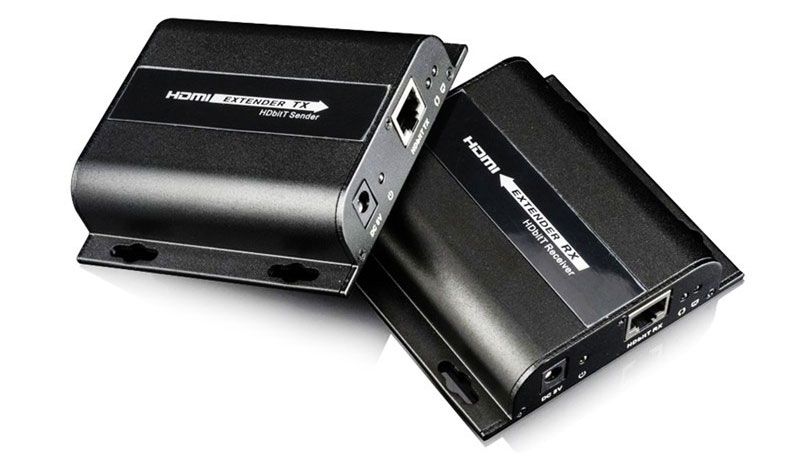

This HDMI extender applies HDbitT technology, to transmit HDMI signal over a single CAT5/5e/6 cable up to 394 feet (120 meters). It supports IR pass-back function and the highest resolution supported is 1080P@60Hz, and it will extend HDMI signal unlimitedly with cascade connection.

This HDMI extender applies HDbitT technology, to transmit HDMI signal over a single CAT5/5e/6 cable up to 394 feet (120 meters). It supports IR pass-back function and the highest resolution supported is 1080P@60Hz, and it will extend HDMI signal unlimitedly with cascade connection.

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us
Accessories

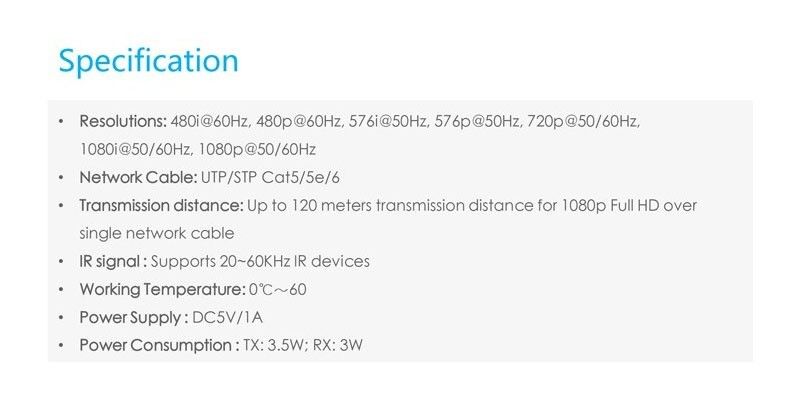

HDMI signal HDMI1.3 compatible with HDCP1.4
Supported Resolutions 480i@60, 480p@60, 576i@50, 576p@50, 720p@50, 720p@60, 1080i@50, 1080i@60, 1080p50, 1080p@60
Network Cable UTP/STP Cat5/5e/6

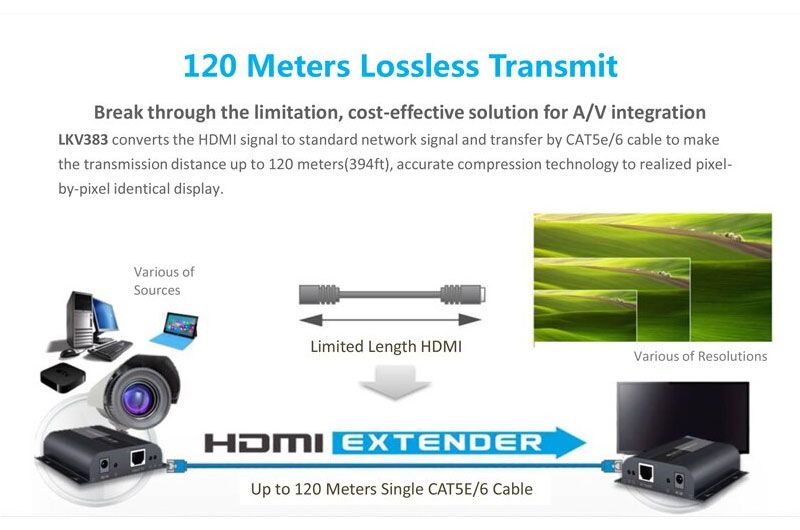

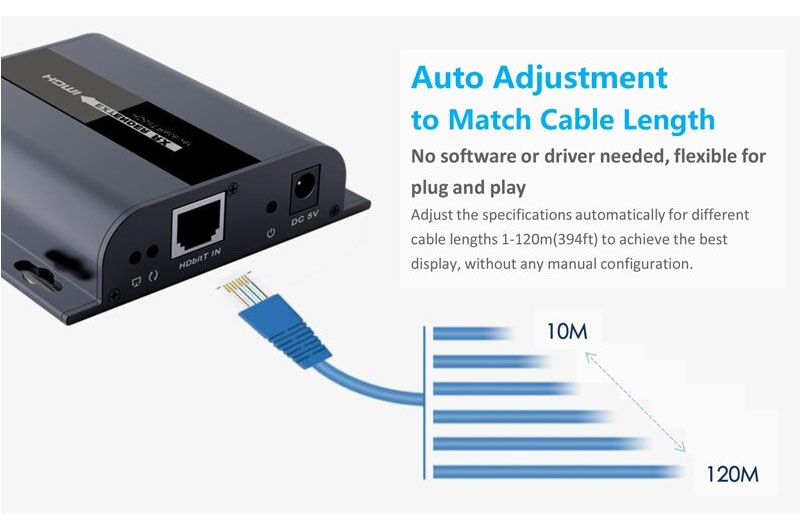

Transmission distance Up to 120m for 1080p60 Full HD over single CAT6

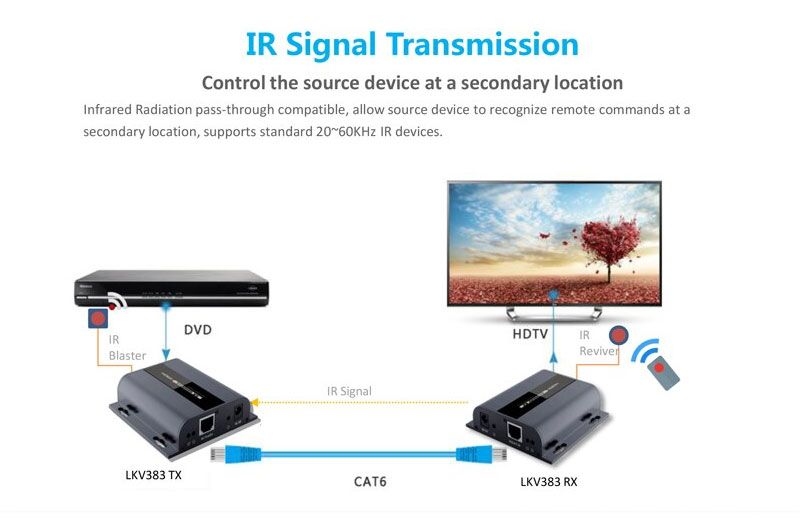

IR signal Supports 20-60Khz IR devices
Working Temperature 0 to 60 °C
Power Supply DC5V/1A
Power Consumption TX 3.5W, RX 3W
Protection Lightning Protection, Surge Protection, ESD

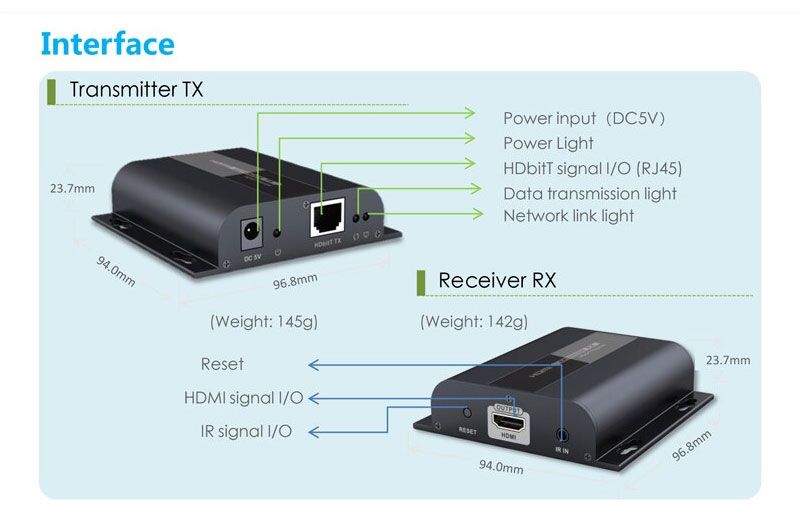

Dimensions 96.8(w)x94(d)x23.7(h)mm * 2pcs
Weight TX 145g RX 142g
Color Black
