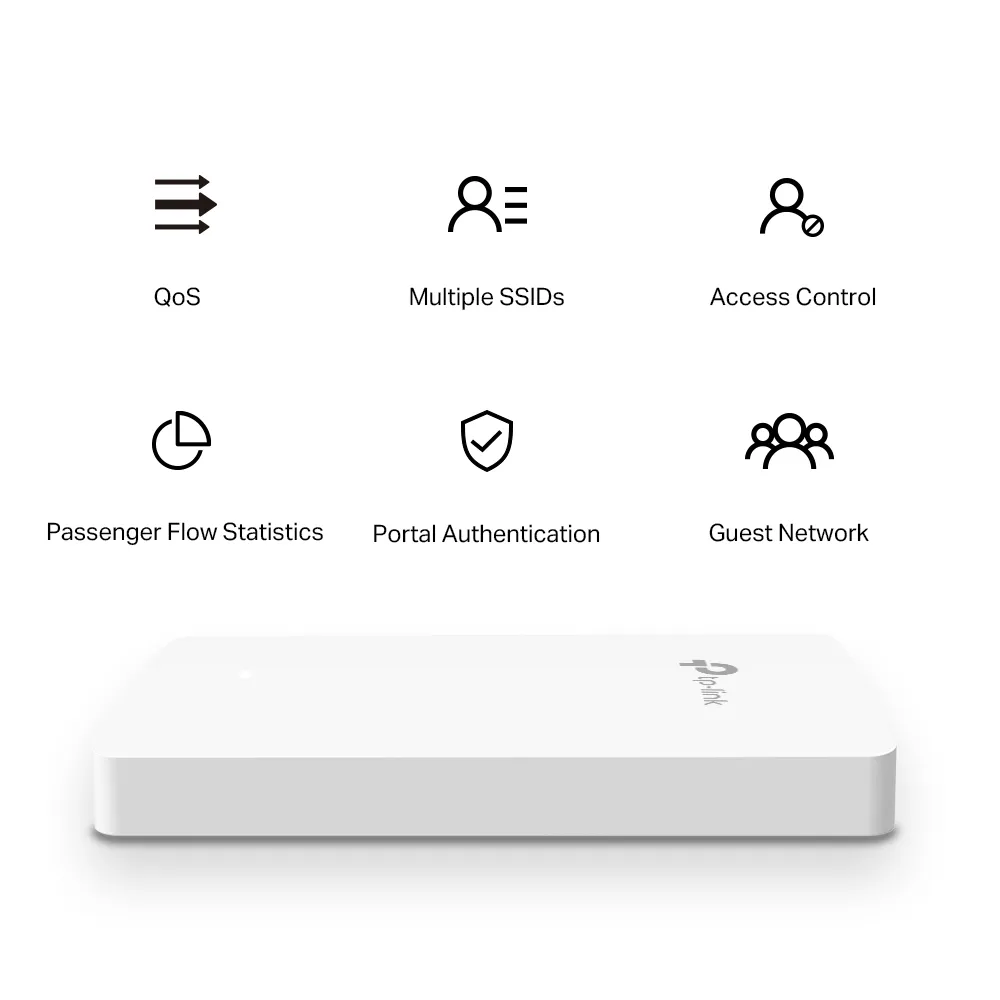

TP-Link Omada EAP235-Wall AC1200 Wall Plate AP
- TP-Link Omada EAP235-Wall — AC1200 wireless MU-MIMO gigabit wall plate access point
- 300 Mbps on 2.4 GHz + 867 Mbps on 5 GHz (AC1200, IEEE 802.11ac)
- 1× gigabit uplink port + 3× gigabit downlink ports (one supports PoE out — max 13 W, requires 802.3at PoE+ input)
- Powered by 802.3af/at PoE — no separate power adapter
- Compatible with 86 mm, EU & US standard junction boxes
- Physical security lock (Kensington-type)
- 200+ wireless client capacity; 16 SSIDs (8 per band)
- MU-MIMO, band steering, beamforming, load balance, rate limit
- Secure guest network — captive portal authentication; SSID-to-VLAN mapping; local LAN port VLAN
- Rogue AP detection; wireless isolation; MAC address filtering; 802.1X support; WEP/WPA/WPA2 (PSK & Enterprise)
- Omada SDN — centralized cloud management (OC300/OC200, software/cloud controller), ZTP, multi-site management
- Management: Omada app, web HTTP/HTTPS, SSH, SNMP v1/v2c, syslog; management VLAN
- 2 dual-band antennas (2× 4 dBi each band)
- Dimensions: 143 × 86 × 20 mm — ultra-slim wall plate
- Power: 9.8 W (PoE); 24.4 W with PoE out
- FCC, CE, RoHS; operating 0-40 °C
| -
