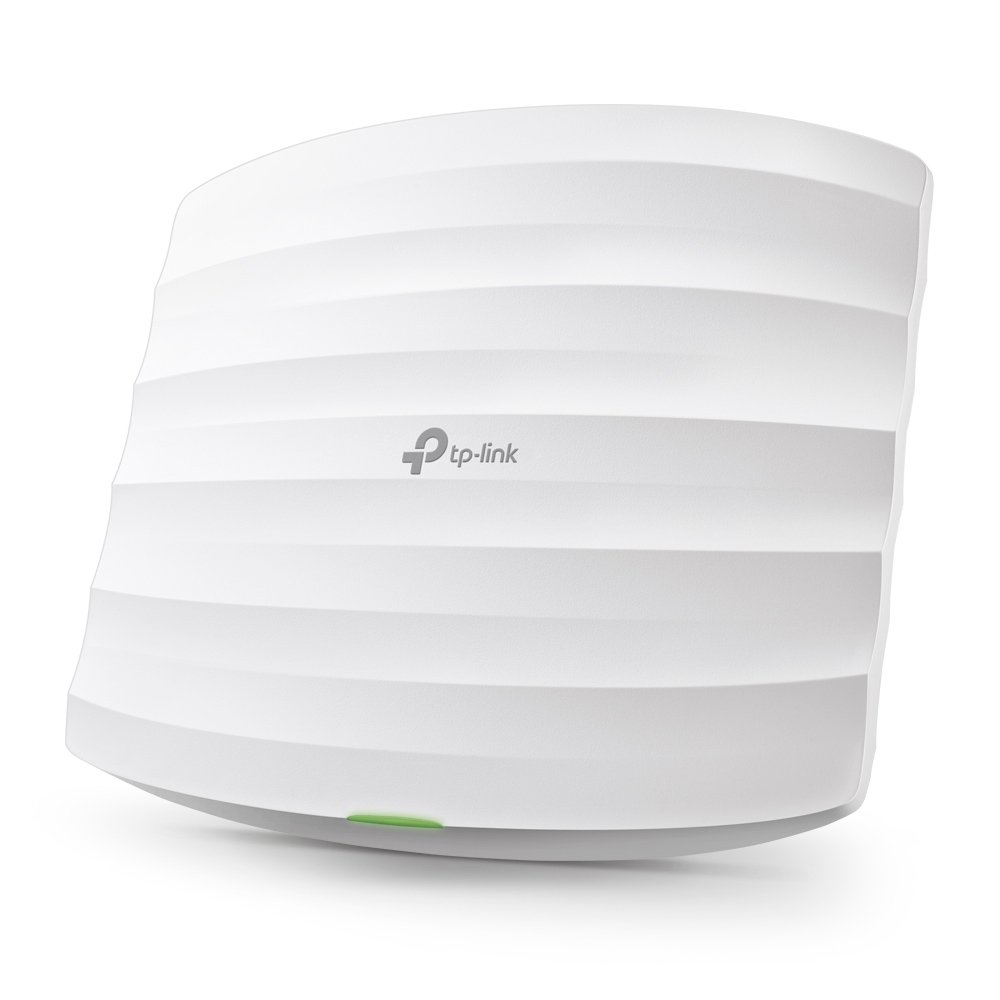

Omada EAP245 – AC1750 Ceiling Wi-Fi Access Point

Wi‑Fi Speed: AC1750 — 450 Mbps on 2.4 GHz + 1300 Mbps on 5 GHz

Wireless Standard: IEEE 802.11a/b/g/n/ac

Ethernet Ports: 2 × Gigabit RJ‑45

Power Options: 802.3af/at PoE + 48 V Passive PoE (adapter included)

Power Consumption: ~12.3 W typical (depends on region)

Antenna: Internal omni-directional

• 2.4 GHz: 3 × ~3.5 dBi
• 5 GHz: 3 × ~4 dBi

Mounting: Ceiling or wall (mount kits included)

Coverage Area: ~140 m² (≈ 1,500 ft²)

Concurrent Clients: 220+

Security & Features:

• Multiple SSIDs (up to 16)
• Band Steering, Load Balancing, Airtime Fairness, Beamforming
• Captive portal, 802.1X, WPA/WPA2, MAC filtering, rogue AP detection

Management: Integrates with Omada SDN (zero-touch provisioning, cloud management, etc.)

Physical Size: ~205.5 × 181.5 × 37.1 mm

Operating Conditions: 0 °C to 40 °C, 10–90% humidity
