Pricelist: - Pricelist
  1. All Products
  2. PABGM
  3. TOA A-2060 Mixer Power Amplifier

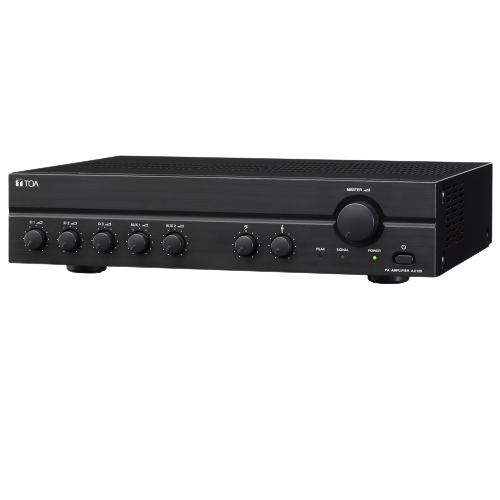

TOA A-2060 Mixer Power Amplifier

TOA A-2060 Mixer Power Amplifier

https://www.teleeye.com.ph/shop/toa-a-2060-mixer-power-amplifier-429 https://www.teleeye.com.ph/web/image/product.template/429/image_1920?unique=fc05f72

TOA A2060 Mixer and Power Amplifiers is designed to be highly cost effective solution to the demands of PA applications. With high levels of performance and versatility it is well-suited for paging and background music. Ideal in schools, offices, shops, warehouses, factories, houses of worship and large meeting spaces.

Note: TOA A2060 is an analogue model with the following differences;

• Contact closure muting on mic 1
• High (70/100V line) and low impedance (4 Ohm) outputs
• 24VDC operation as well as 240VAC

TOA A2060 Mixer and Power Amplifiers is designed to be highly cost effective solution to the demands of PA applications. With high levels of performance and versatility it is well-suited for paging and background music. Ideal in schools, offices, shops, warehouses, factories, houses of worship and large meeting spaces.

Note: TOA A2060 is an analogue model with the following differences;

• Contact closure muting on mic 1
• High (70/100V line) and low impedance (4 Ohm) outputs
• 24VDC operation as well as 240VAC

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us
Your Dynamic Snippet will be displayed here... This message is displayed because youy did not provide both a filter and a template to use.
  • Details
  • Download
  • Models

Product Specification


Power Source 220 – 240V AC or 24V DC
Rated Output 60W
Power Consumption 72W (EN60065), 150W(AC operation at rated output, 4A (DC operation at rated output)
Frequency Response 50 – 20,000Hz (+/- 3 dB)
Distortion Under 1% at 1kHz,1/3 rated power
Input MIC 1-3: -60db 600Ω,electronically balanced, XLR-3-31 type. AUX 1,2: -20dB, 10kΩ, unblanced, RCA pin jack. Mute: screw terminal (for MIC 1)
SPEAKER OUT Balanced (floating)
HIGH IMPEDANCE 170Ω (100V)
LOW IMPEDANCE 4Ω (15.5V)
REC. OUT Odb, 600Ω unbalanced, RCA pin jack
Phnatom Powe DC + 21V (MIC 1)
S/N Ratio Over 60dB
Tone Control Bass: +/- 10 dB at 100k Hz Treble: +/- 10 dB at 10k Hz
Muting Contact closure: Mutes other signals by 0 – 30 dB attenuation
Indicator Power signal, peak
Finish Panel: ABS resin, black/Case: Steel plate, black
Dimensions 420 (W) x 100.9 (H) x 280.2 (D) mm
Weight 7kg



Download Center

Datasheet
