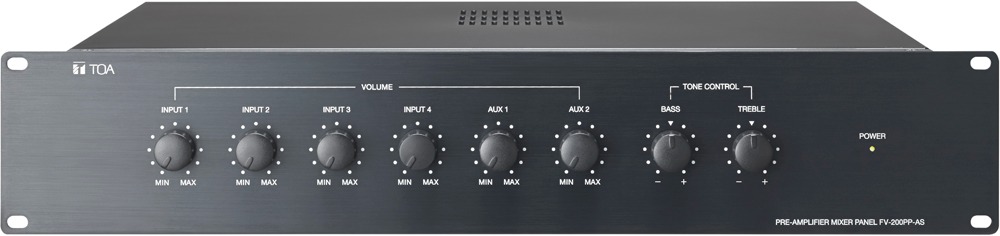

TOA FV-200PP Pre-Amplifier Mixer Panel

TOA FV-200PP Pre-Amplifier Mixer Panel

https://www.teleeye.com.ph/web/image/product.template/436/image_1920?unique=fc05f72

The FV-200PP Pre-Amplifier Mixer Panel is the basic operation section of the FV-200 Series Emergency Public Address System

The FV-200PP Pre-Amplifier Mixer Panel is the basic operation section of the FV-200 Series Emergency Public Address System

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us

Product Specification


Power Source Usable power supply unit : FV-200PS / 24 V DC (operating range : 19.5 - 27 V), M3 screw terminal
Current Consumption 110 mA
Frequency Response 50 Hz - 15 kHz, ±3 dB, 1 kHz
Distortion Under 1% (1 kHz, rated output)
Signal to Noise Ratio Over 60 dB
Audio Input EV : -20 dB*, 600 Ω, unbalanced, removable terminal block (2 pins) / Timer : -20 dB*, 600 Ω,unbalanced,removable terminal block (2 pins) / Paging : -60/-20 dB* (selectable), 600 Ω, balanced, removable terminal block (3 pins) / RF Link : 0 dB*, 600 Ω,unbalanced,removable terminal block (2 pins) / MIC/LINE 1 - 4 : -60/-20 dB* (selectable), 600 Ω, balanced, removable terminal block (3 pins) / AUX 1 - 2 : -20 dB*,10 kΩ, unbalanced, RCA Jack
Audio Output Priority output : 0 dB*, balanced, removable terminal block (3 pins) /BGM output : 0 dB*, balanced, Removable terminal block (3 pins)
Phantom Power MIC/LINE 1 (selectable) (+21 V DC)
Tone Control Bass : -10 dB at 100 Hz, +10 dB at 100 Hz (for INPUT BGM) / Treble : -10 dB at 10 kHz, +10 dB at 10 kHz (for INPUT BGM)
Muting MIC/LINE 1 : Mutes other input signals (Mic/Line 2 - 4, AUX 1 - 2) by 0 - 30 dB attenuation
Control Input Timer : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins) / Paging : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins) / EV : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins)
Control Output All Call : Contact Switch (Normally Open), removable terminal block (2 pins)
LED Indicator Power (Green)
Operating Temperature 0 °C +40 °C
Operating Humidity Under 90% RH (no condensation)
Finish Front Panel : Aluminum, black, alumite
Dimensions 482 (W) X 88.4 (H) X 353.3 (D) mm
Weight 4.2 kg
Included Accessories Removable terminal plug (2 pins) x 7, removable terminal plug (3 pins) x 8, Instruction Manual x 1
