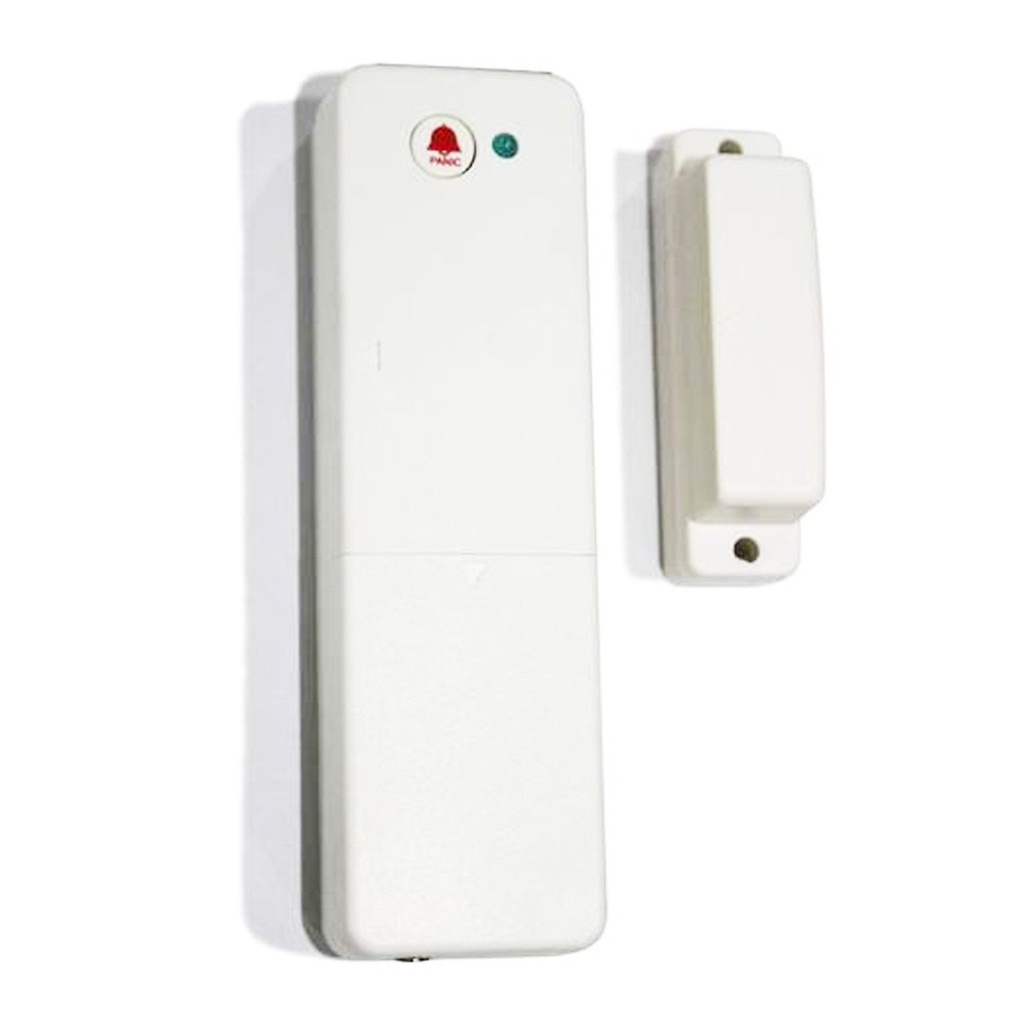

SB1802P Wireless Magnetic Door/Window Sensor

https://www.teleeye.com.ph/web/image/product.template/408/image_1920?unique=66d1fa8

"- SB1802P wireless magnetic door/window sensor (reed switch + magnet pair)
- Detects door or window opening and instantly sends a signal to the alarm host
- Working frequency: 433.92 MHz (FCC-certified low-power transmitter)
- Built-in tamper switch — triggers alarm on cover removal
- LED indicates signal transmission and battery condition
- Low battery detector reports to the alarm console
- Open/close status report mode supported
- Works together with the alarm host (console/panel)
- Easy surface installation on doors, windows, gates and drawers

- SB1802P wireless magnetic door/window sensor (reed switch + magnet pair)
- Detects door or window opening and instantly sends a signal to the alarm host
- Working frequency: 433.92 MHz (FCC-certified low-power transmitter)
- Built-in tamper switch — triggers alarm on cover removal
- LED indicates signal transmission and battery condition
- Low battery detector reports to the alarm console
- Open/close status report mode supported
- Works together with the alarm host (console/panel)
- Easy surface installation on doors, windows, gates and drawers
0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us
Intrusion Alarm System Fronti Wireless Intrusion Detection System

Product Specification


Power Source DC 3V CR123A Lithium battery
Stand-by current 8uA (Max)
Broadcast range 150M in a free space
Working Current 8mA (Max)
Working temperature range -10 deg C to 40 deg C
Battery Life 3 years(Depending on usage conditions)
Dimensions 100L x 30W x 20H (mm), Weight: 60g
Working frequency 433.92.MHz or 869.25MHz
