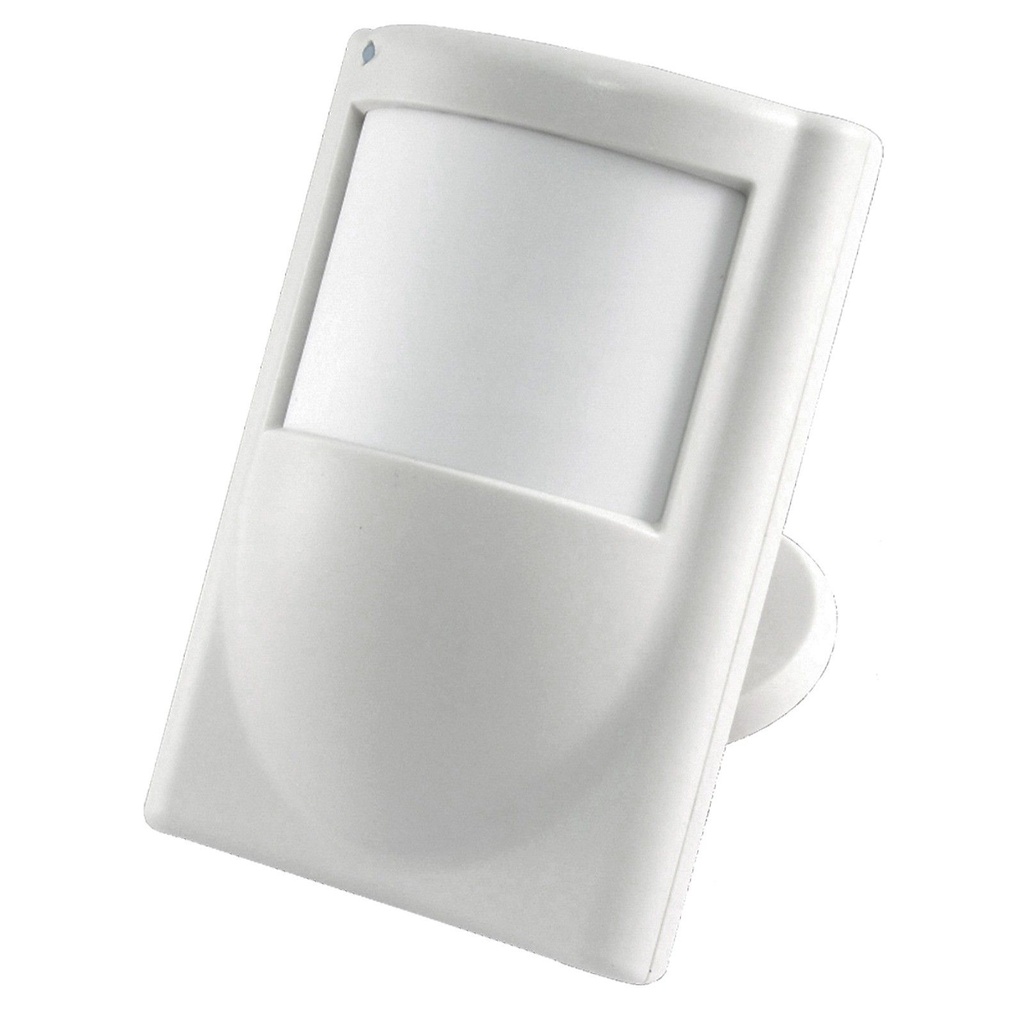

SB1803 WL Intrusion Alarm PIR Motion Sensor

https://www.teleeye.com.ph/web/image/product.template/407/image_1920?unique=e52b1dc

- SB1803 wireless PIR motion sensor (Sunbow SB-1803 model)
- Detects human movement for intrusion alarm systems
- Detection range: 12 meters max, 114° sector coverage
- Range adjustable: 8 m / 12 m
- Sensitivity: 1 pulse / 2 pulses (adjustable)
- Output: Monostable (trigger/reset), burglar alarm
- Power: CR123A lithium battery (DC 3V), up to 2 years battery life
- ABS fire-proof plastic housing
- Easy wireless pairing with alarm console

- SB1803 wireless PIR motion sensor (Sunbow SB-1803 model)
- Detects human movement for intrusion alarm systems
- Detection range: 12 meters max, 114° sector coverage
- Range adjustable: 8 m / 12 m
- Sensitivity: 1 pulse / 2 pulses (adjustable)
- Output: Monostable (trigger/reset), burglar alarm
- Power: CR123A lithium battery (DC 3V), up to 2 years battery life
- ABS fire-proof plastic housing
- Easy wireless pairing with alarm console
0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us
Intrusion Alarm System Fronti Wireless Intrusion Detection System

Product Specification


Power Source DC 3V CR123A Lithium battery
Stand-by current 25uA (Max)
Broadcast range 150M in a free space
Working Current 8mA (Max)
Working temperature range -10 deg C to 40 deg C
Battery Life 2 years
Dimensions 120L x 70W x 45H (mm), Weight: 125g
Working frequency 433.92.MHz or 869.25MHz
