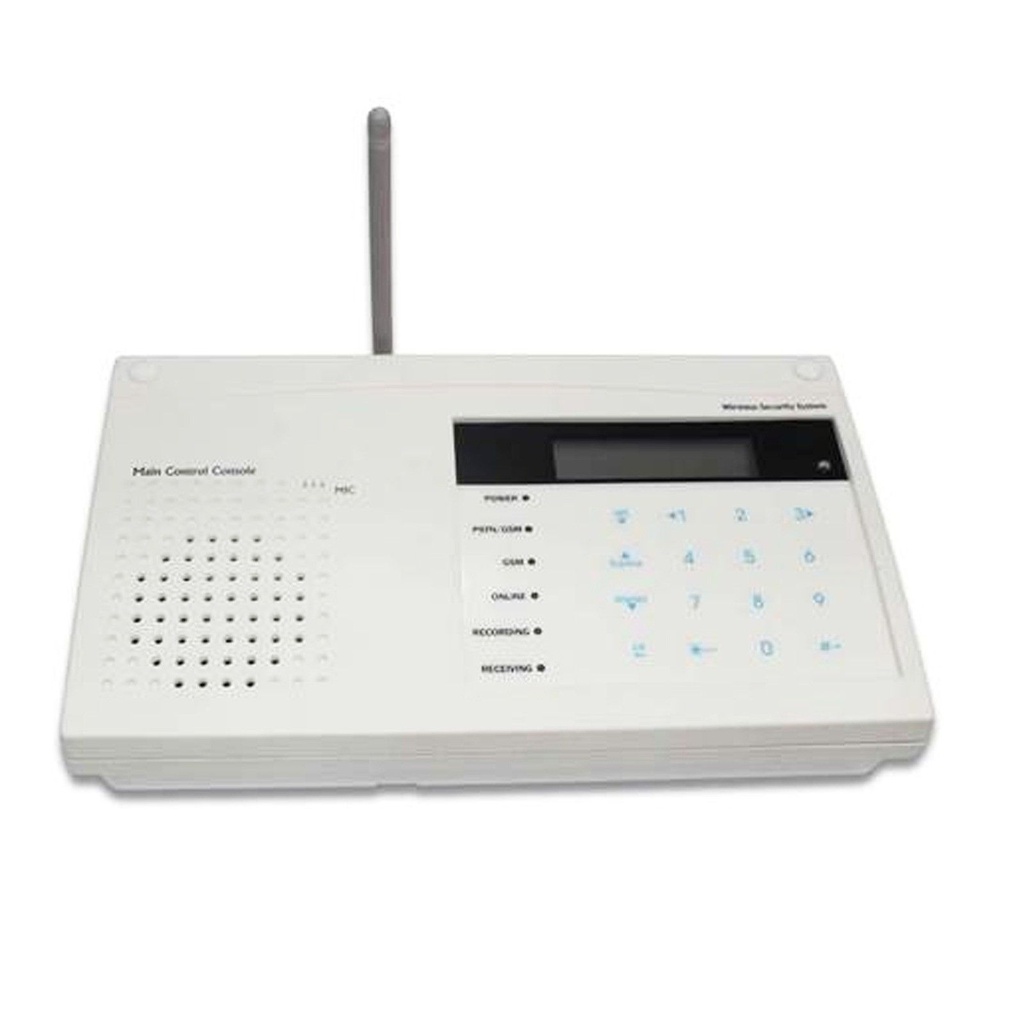

SB255B Wireless Security System Main Console

Features

• Two partitions of working mode & 70pcs wireless sensors to trigger alarm & 10pcs remote controller.
• 10 passwords available on PC and Keypad to set working mode.
• 70pcs sensors can be set to have alarm function of 24H, bypass, delay, door chime and silent.
• Touch pad for operating alarm working mode, LCD display for working mode, 150logs alarm event.
• Set program’s data by keypad and PC.
• Can connect to PC via USB port on window software read/write setting all programs.
• It can record 40 seconds and 4 kinds of different emergency voice messages by user.
• Pre-set to save 2 phone numbers for digital dialer CONTACT ID on alarm calling out.
• Pre-set to save 4 phone numbers for playing Voice messages on alarm calling out.
• Low battery supervision is on the console and on each individual sensor.
• Built-in input NC/NO port can connect to wire type sensors, alarm console or panic buttons to call-out to report alarm event.
• Built-in 2 wires alarms output ports can trigger external siren, and NC/NO relay switch can control the light/CCTV.
• With 2 channels of temperature sensors which can display INT/EXT -40 to +60℃level data.
• It can control the FS148S wireless external siren and report event to FS310W wireless keypad LCD.
• User can send SMS to control the AC power switch ON/OFF.
• Temperature sensors HI/LO level can control the AC power switch ON/OFF.
• Timers can control the AC power switch ON/OFF.
• Call-in to remote to activate hands-free speakerphone, 2-way voice communication.
• After being connected to emergency call, the called party can listen-in or talk with.
• Trigger alarm will call-out to contact ID, and then voice dialer will play voice alarm message.
• The APP will on local IP router scan the Wi-Fi module then register to cloud server.
• It can set working mode by remote controller or smart phone IOT APP.
• The smart phone IOT APP can view all setting program alarm data and all event log of the console.

Product Specification
