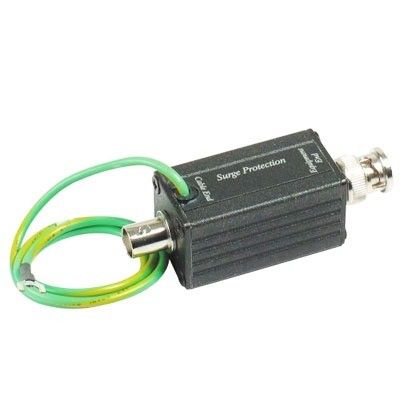

Coaxial Surge Protection

Coaxial Surge Protection

https://www.teleeye.com.ph/web/image/product.template/497/image_1920?unique=2ad648b

• Performs a different function than grounding requirements.
• Protects equipment from high voltage surges from nearby lightning strikes.
• Two stage protection: under 1ns-90V, over 10ns-12V.
• Wide range of applications: CCTV/CATV system, Antenna of
• Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR…etc.

• Performs a different function than grounding requirements.
• Protects equipment from high voltage surges from nearby lightning strikes.
• Two stage protection: under 1ns-90V, over 10ns-12V.
• Wide range of applications: CCTV/CATV system, Antenna of
• Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR…etc.

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us
Accessories


BNC male to BNC female
Hi Frequency for both CCTV and CATVuse
Surge Protection Attack Time: 1 ns
Maximum Surge Current: 4 KV
Surge Life: 300 surges of 100Amps
Normal Resistance Across Coax: 10,000 M£[
Surge ResistanceApprox: 0£[
BAND PASS: 0~1 GHZ
Power Passing Capability 130V AC/DC, 65 Vrms at 10Amps
Insertion Loss: Less than 0.2 dB
Return Loss (75 ohms): 16dB
