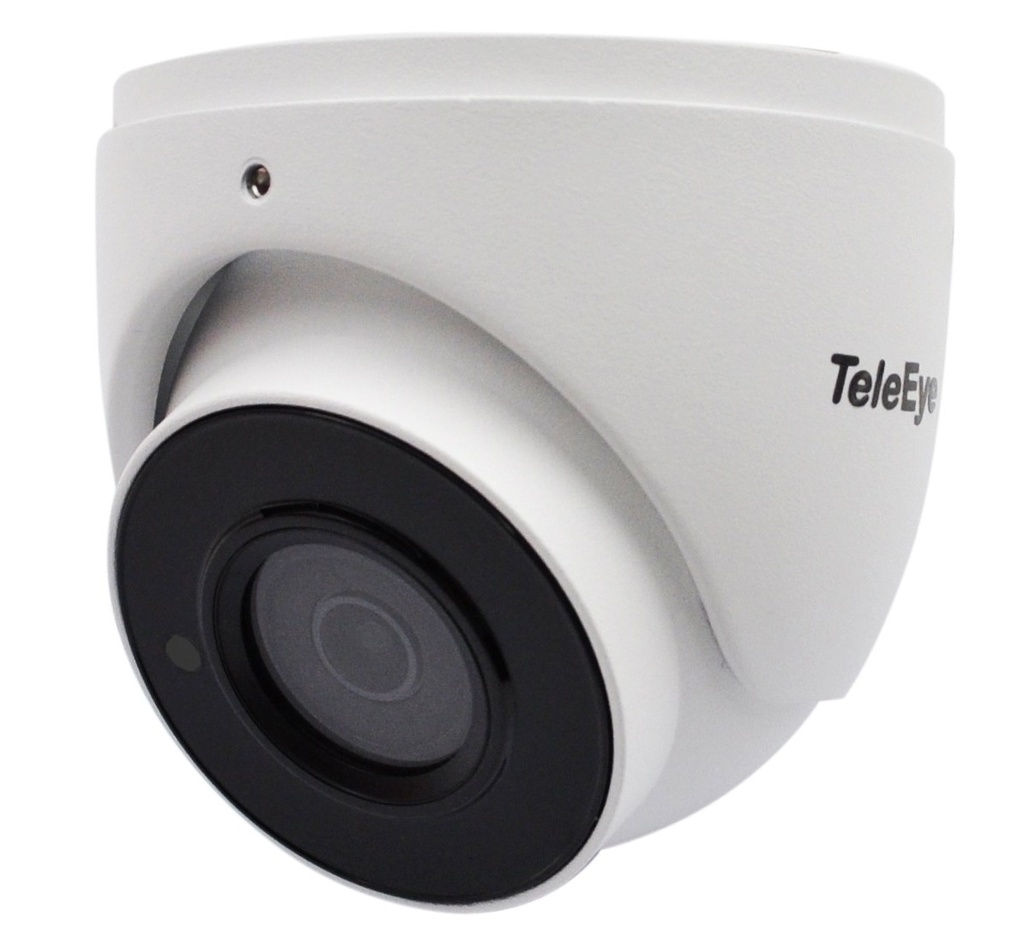

TeleEye AF232 1080P Starlight AHD IR Fixed Dome

https://www.teleeye.com.ph/web/image/product.template/322/image_1920?unique=69ece91

⚫1/2.8" 2MP Starlight CMOS sensor
⚫ Up to 1000TVL resolution
⚫ f=2.8mm Fixed Lens Angle of view 101°
⚫ 20~30M IR illumination range
⚫ IP67 weather proof

This combination does not exist.

Contact Us

Product Specification


IMAGE SENSOR 1/2.8" 2MP Starlight CMOS
RESOLUTION 1920 x 1080
Video Output AHD/TVI/CVI/CVBS (BNC)
Frame Rate 30fps(60Hz), 25fps(50Hz)
Minimum Illumination 0Lux (IR ON); Color: 0.005Lux / F1.2, AGC ON
IR LED / IR Distance 20~30M
Lens f=2.8mm lens
Angle of view 101°
Electronic Shutter Auto; 1/25s~1/50000s(PAL); 1/30s~1/50000s(NTSC)
S/N Ratio ≥52dB ( AGC OFF )
Function Control OSD ( COC Control )
Day & Night ICR
WDR Yes(120dB)
Digital NR Yes ( 3D DNR )
AGC Yes
Auto White Balance Yes
BLC Yes
HLC Yes
LSC Yes
Sharpness Yes
Brightness Yes
Smart IR Yes
Power Supply 12VDC
Power Consumption IR OFF: < 1.5W; IR ON: < 4W
Ambient Temperature - 30 °C ~ 50 °C
Relative Humidity 10%-90%
Weather Proof IP67
Dimension Ф 94.6mm x 82.8mm
Weight 410g
