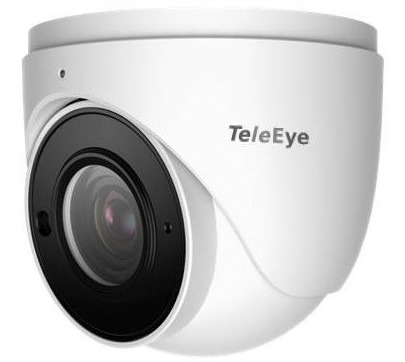

TeleEye AF236 1080p Starlight AHD Dome Camera

https://www.teleeye.com.ph/web/image/product.template/323/image_1920?unique=a9a1df7

• 1/2.8" 2MP CMOS sensor
• Up to 1000TVL resolution
• f=2.8 ~ 12mm Vari-Focal Lens
• Angle of view 88.6°- 34.4°
• 30~50M IR illumination range
• IP67 weather proof

This combination does not exist.

Contact Us

Product Specification


IMAGE SENSOR 1/2.8” 2MP CMOS
RESOLUTION 1920 x 1080
VIDEO OUTPUT AHD/TVI/CVI/CVBS (BNC)
FRAME RATE 30fps(60Hz), 25fps(50Hz)
MINIMUM ILLUMINATION Color:0.01Lux / F1.2, AGC ON;
IR LED / IR DISTANCE 30~50M
LENS f=2.8mm ~12mm vari-focal
ANGLE OF VIEW 88.6°- 34.4°
ELECTRONIC SHUTTER Auto; 1/50s~1/100000s(PAL); 1/60s~1/100000s(NTSC)
S/N RATIO ≥52dB ( AGC OFF )
FUNCTION CONTROL OSD ( COC Control )
DAY & NIGHT ICR
WDR Yes
DIGITAL NR Yes ( 2D DNR )
AGC Yes
AUTO WHITE BALANCE Yes
BLC Yes
HLC Yes
IMAGE SETTING Yes
SHARPNESS Yes
SMART IR Yes
Angle Adjustment Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°
POWER SUPPLY 12VDC
POWER CONSUMPTION IR OFF: < 1W; IR ON: < 6W
AMBIENT TEMPERATURE - 30 °C ~ 50 °C
RELATIVE HUMIDITY 10%-90%
WEATHER PROOF IP67
DIMENSION Ф 111.5 mmx 100mm
WEIGHT 540g
