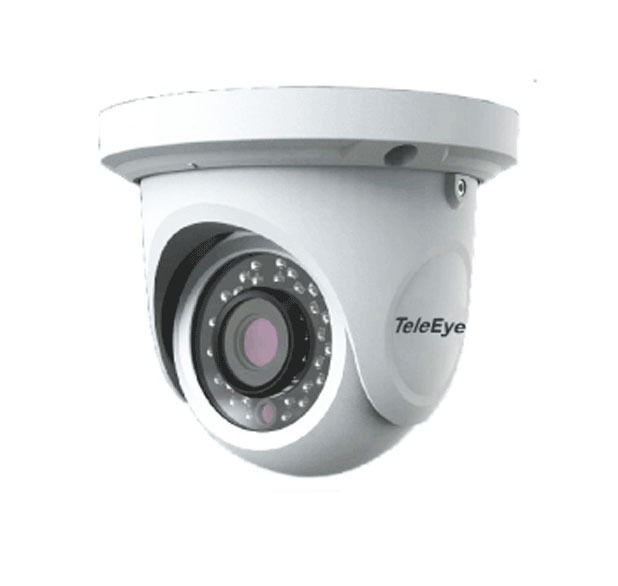

TeleEye AF531 IR FIXED DOME

https://www.teleeye.com.ph/web/image/product.template/315/image_1920?unique=44ac092

• 1/2.7”5MP CMOS sensor
• 4MP(2560×1440) @ 30fps/
• AHD/ TVI/ CVI/ CVBS video output
• Up to 1500TVL resolution
• 10~20M IR illumination range
• f=2.8mm lens
• 5MP(2592×1944) @ 20fps/
• IP66 weather proof

This combination does not exist.

Contact Us

Product Description


Image Sensor 1/2.7" 5MP CMOS
Resolution 4MP 2560x1440(Default output) / 5MP 2592x1944
Video Output AHD / TVI / CVI / CVBS (BNC)
Frame Rate 5MP@20fps / 4MP@30fps
Minimum Illumination Color : 0.01 lux@F1.2,
AGC ON; B/W : 0 lux with IR
IR Distance 10~20M
Lens f=2.8mm lens
Angle of view 105°
Electronic Shutter Auto; 1/50s~1/100000s (PAL); 1/60s~1/100000s(NTSC)
S/N Ratio ≥52dB ( AGC OFF )
Function Control OSD ( COC Control )
Day & Night ICR
Digital WDR Yes
Digital NR Yes ( 2D DNR )
AGC Yes
Auto White Balance Yes
BLC Yes
Mirror Image Yes
Sharpness Yes
Smart IR Yes
Image Setting Yes
Power Supply 12VDC
Power Consumption IR OFF : < 1W; IR ON : < 3W
Ambient Temperature - 30 °C ~ 50 °C
Relative Humidity 10%-90%
Weather Proof IP66
Dimension Ф 87mm x 108mm
Weight 360g
