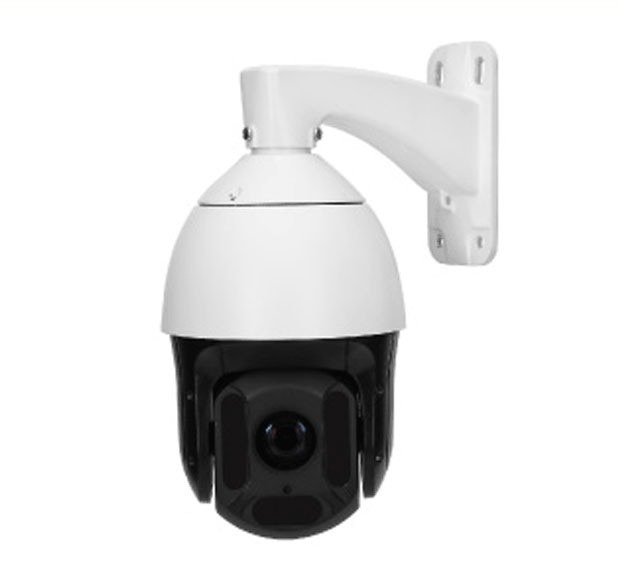

TeleEye AF6132A 1080p IR Speed Dome

TeleEye AF6132A 1080p IR Speed Dome

https://www.teleeye.com.ph/web/image/product.template/318/image_1920?unique=fc05f72

•1/2.8″ 2MP Sony CMOS Sensor
•33x Optical Zoom
•Resolution: 1080p
•Day/Night (ICR), Auto iris, Autofocus
•AWB Max. 200°/s pan 180°/s tilt speed
•Up to 128 presets
•Pan: 360° endless rotation,
•Tilt: 90° with auto flip
•IR Distance Up to 120M

•1/2.8″ 2MP Sony CMOS Sensor
•33x Optical Zoom
•Resolution: 1080p
•Day/Night (ICR), Auto iris, Autofocus
•AWB Max. 200°/s pan 180°/s tilt speed
•Up to 128 presets
•Pan: 360° endless rotation,
•Tilt: 90° with auto flip
•IR Distance Up to 120M

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us

Product Description


IMAGE SENSOR 1/2.8” 2MP Sony CMOS Sensor
RESOLUTION 1080p 25/30fps
MINIMUM ILLUMINATION Color: 0.05lux, BW: 0.005lux
LENS 33x optical zoom f =4.6mm-152mm
ANGLE OF VIEW 66.1°（W）～2.46°（T）
S/N RATIO ≥50dB
VIDEO OUTPUT 1080p AHD / CVBS
IR DISTANCE 120M
OSD MENU Built-in
VIDEO SETTING Bright(0-31), Contrast(0-31), Sharpness(0-31), Saturation(0-31)
D/N MODE Manual / Auto
White Balance Auto
IRIS Auto
OPERATION ANGLE Pan 0°~360° with continuous rotation; tilt 0°～90°
MANUAL SPEED Pan: 0.1°～200°/s; Tilt: 0.1°～180°/s
PRESET SPEED 200°/s
PRESET 128 Presets
SCAN 355° programmable, 4 scans
TOUR 4 tours, and speed & park time of presets can be set.
PATTERN 4 patterns, and each record time is not less than 180s
DISPLAY ZONE 8 programmable zones
PROTOCOLS Pelco-P/D (fully compatible) / COC(AHD 1080p)
COMMUNICATION RS485 (Baud rate 2400 / 4800 / 9600 / 19200bps)
VOLTAGE 24VDC
MAX. RATING 35W
AMBIENT TEMPERATURE -20°C ~ 60°C OPERATING
ENVIRONMENT RELATIVE HUMIDITY 0%-95%
PROTECTION GRADE 4000V Lighting-proof and Surge-proof
WEATHER PROOF STANDARD IP66 MECHANICAL
WEIGHT 3.6kg



Download Center

Datasheet
