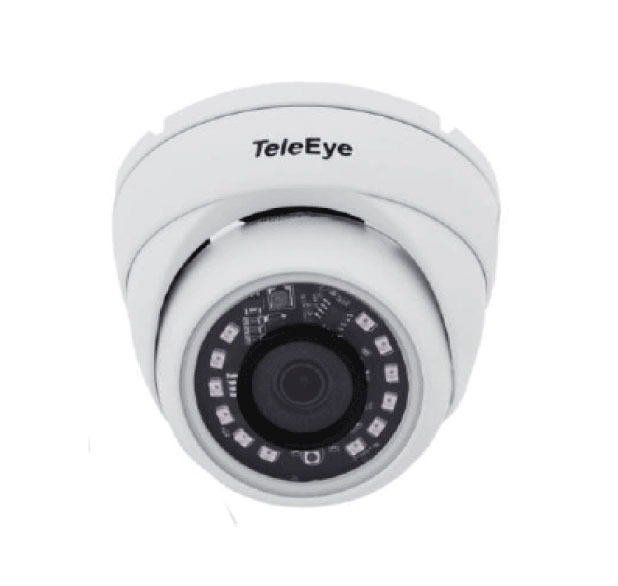

TeleEye AF832 IR FIXED DOME

TeleEye AF832 IR FIXED DOME

https://www.teleeye.com.ph/web/image/product.template/319/image_1920?unique=fc05f72

•1/2”8MP CMOS sensor
•3840 x 2160 @ 15fps
•AHD/ TVI/ CVI/ CVBS video output
•15M IR illumination range
•f=2.8 mm Fixed lens
•IP66 weatherproof

•1/2”8MP CMOS sensor
•3840 x 2160 @ 15fps
•AHD/ TVI/ CVI/ CVBS video output
•15M IR illumination range
•f=2.8 mm Fixed lens
•IP66 weatherproof

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us

Product Description


IMAGE SENSOR 1/2" 8MP CMOS
RESOLUTION 3840 x 2160
VIDEO OUTPUT AHD / TVI / CVI / CVBS (BNC)
FRAME RATE 15fps
MINIMUM ILLUMINATION 0 lux with IR
IR DISTANCE ~15M
LENS f=2.8mm lens
ELECTRONIC SHUTTER Auto; FLK
S/N RATIO ≥50dB ( AGC OFF )
FUNCTION CONTROL OSD
DAY & NIGHT AUTO / EXT / BW / COLOR
DIGITAL NR 2DNR / 3DNR, OFF
AGC 1 - 15
AUTO WHITE BALANCE ATW / AWC-SET
BLC BLC / OFF
MIRROR IMAGE MIRROR / V-FLIP / ROTATE / OFF
IMAGE SETTING Brightness, Sharpness,
POWER SUPPLY 12VDC
POWER CONSUMPTION IR OFF: < 2W; IR ON: < 6W
AMBIENT TEMPERATURE - 20 °C ~ 50 °C
RELATIVE HUMIDITY 10%-90%
WEATHER PROOF IP66
DIMENSION Φ93mm x 75mm
WEIGHT 400g
