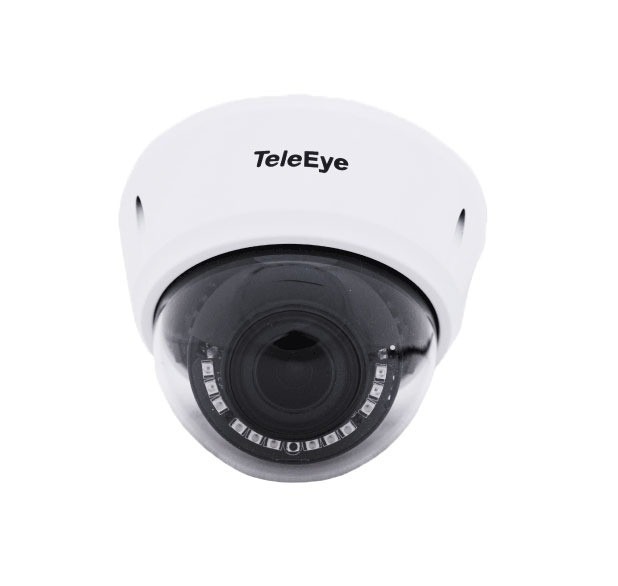

TeleEye AF856 IR Vari-Focal Dome Camera

https://www.teleeye.com.ph/web/image/product.template/320/image_1920?unique=c8ac09a

•1/2”8MP CMOS sensor
•3840 x 2160 @ 15fps
•AHD/ TVI/ CVI/ CVBS video output
•20M IR illumination range
•Electric vari-focal f=3.6-10 mm Lens
•IP66 weatherproof
•Vandal resistance

This combination does not exist.

Contact Us

Product Description


IMAGE SENSOR 1/2" 8MP CMOS
RESOLUTION 3840 x 2160
VIDEO OUTPUT AHD / TVI / CVI / CVBS (BNC)
FRAME RATE 15fps
MINIMUM ILLUMINATION 0 lux with IR
IR DISTANCE 10~20M
LENS f=3.6-10mm motorized lens
ELECTRONIC SHUTTER Auto; FLK
S/N RATIO ≥50dB ( AGC OFF )
FUNCTION CONTROL OSD
DAY & NIGHT AUTO / EXT / BW / COLOR
DIGITAL NR 2DNR / 3DNR, OFF
AGC 1 - 15
AUTO WHITE BALANCE ATW / AWC-SET
BLC BLC / OFF
MIRROR IMAGE MIRROR / V-FLIP / ROTATE / OFF
IMAGE SETTING Brightness, Sharpness,
POWER SUPPLY 12VDC
POWER CONSUMPTION IR OFF: < 3W; IR ON: < 6W
AMBIENT TEMPERATURE - 20 °C ~ 50 °C
RELATIVE HUMIDITY 10%-90%
WEATHER PROOF IP66
VANDAL RESISTANT IK10
DIMENSION Φ117mm x 88.5mm
WEIGHT 650g



Download Center

Datasheet
