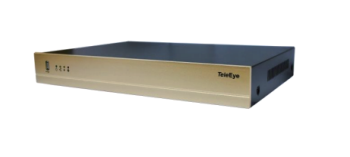

TeleEye GN6516 WQHD Digital Video Recorder

• WQHD (2560 x 1440)
• Enhanced H.264
• Hacker Resistant
• Pre/Post Alarm Image
• Arm/Disarm Interface
• E2E Health Check
• Duplicated Recording

This combination does not exist.

Product Specification

CONFIGURATION	Shared Network
RESOLUTIONS	WQHD, 1080p, 720p
MAX. CHANNELS	16
COMPATIBLE MODELS	TeleEye MP, MQ & ONVIF (Profile S)
OUTPUTS	1x HDMI (max. resolution 1080p), 1x VGA (max. resolution 1080p)
VIDEO & AUDIO	Enhanced H.264, H.264
MODES	Manual, Scheduled, Event-driven
STORAGE	2x SATA, internal
MAX. RECORDING PERFORMANCE	25fps per channel @ WQHD
DUPLICATED RECORDING	Yes
TYPES	External Alarm, Video Motion Detection, System Tamper, Power Interruption, HDD Failure
ACTIONS	Dialback, Buzzer, Email Notification, Relay Control, Telemetry Preset
CONTROLS	Arm/Disarm, Security Switch, Power Interruption, System Tamper
ALARM INPUTS	4x on DVR + Alarm Inputs on Cameras
VIDEO MOTION DETECTION	Yes
PRE/POST ALARM IMAGE SEQUENCE	Yes
OUTPUT	1
INPUTS	1x RCA on DVR and Audio Inputs on Cameras
OUTPUTS	1x RCA on DVR and Audio Outputs on Cameras
NETWORK	100/1000 based-T
SURELINK	Yes
THROUGHPUT CONTROL	Yes
WEB SERVER	Built-in
JOYSTICK CONTROL	RX-KB07
USB	3 x USB 2.0
RATING	DC 12V, 4A
AMBIENT TEMPERATURE	-10°C - 55°C
RELATIVE HUMIDITY	10% - 90%
DIMENSION	360mm x 242mm x 48mm
WEIGHT	1.8kg
