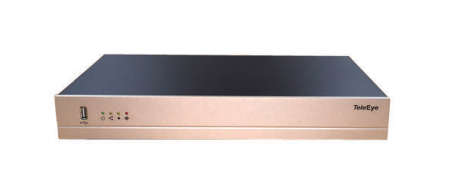

TeleEye GN8608 4K Digital Video Recorder

• 4K (3840 x 2160)
• H.265
• Hacker Resistant
• PoE Support
• Pre/Post Alarm Image
• Arm/Disarm Interface
• E2E Health Check
• Duplicated Recordin

This combination does not exist.

Product Specification

CONFIGURATION	Dedicated Network/Shared Network
RESOLUTIONS	4K, WQHD, 1080p, 720p
MAX. CHANNELS	8
DEDICATED VIDEO PORTS	8x, 100base-T, PoE
COMPATIBLE MODELS	TeleEye MP, MQ & ONVIF (Profile S)
OUTPUTS	1x HDMI (max. resolution 4K), 1x VGA (max. resolution 1080p)
VIDEO & AUDIO	H.265, Enhanced H.264, H.264
MODES	Manual, Scheduled, Event-driven
STORAGE	2x SATA, internal
MAX. RECORDING PERFORMANCE	25fps per channel @ 4K
DUPLICATED RECORDING	Yes
TYPES	External Alarm, Video Motion Detection, System Tamper, Power Interruption, HDD Failure
ACTIONS	Dialback, Buzzer, Email Notification, Mobile Notification, Relay Control, Telemetry Preset
CONTROLS	Arm/Disarm, Security Switch, Power Interruption, Tamper Detection
ALARM INPUTS	4x on DVR + Alarm Inputs on Cameras
VIDEO MOTION DETECTION	Yes
PRE/POST ALARM IMAGE SEQUENCE	Yes
OUTPUT	1
INPUTS	1x RCA on DVR and Audio Inputs on Cameras
OUTPUTS	1x RCA on DVR and Audio Outputs on Cameras
NETWORK	100/1000 based-T
SURELINK	Yes
THROUGHPUT	CONTROL Yes
WEB SERVER	Built-in
JOYSTICK CONTROL	RX-KB07
USB	2 x USB 2.0
RATING	DC 48V, 3A
AMBIENT TEMPERATURE	-10°C - 55°C
RELATIVE HUMIDITY	10% - 90% (no condensation)
DIMENSION	360mm x 242mm x 48mm
WEIGHT	2.0kg
