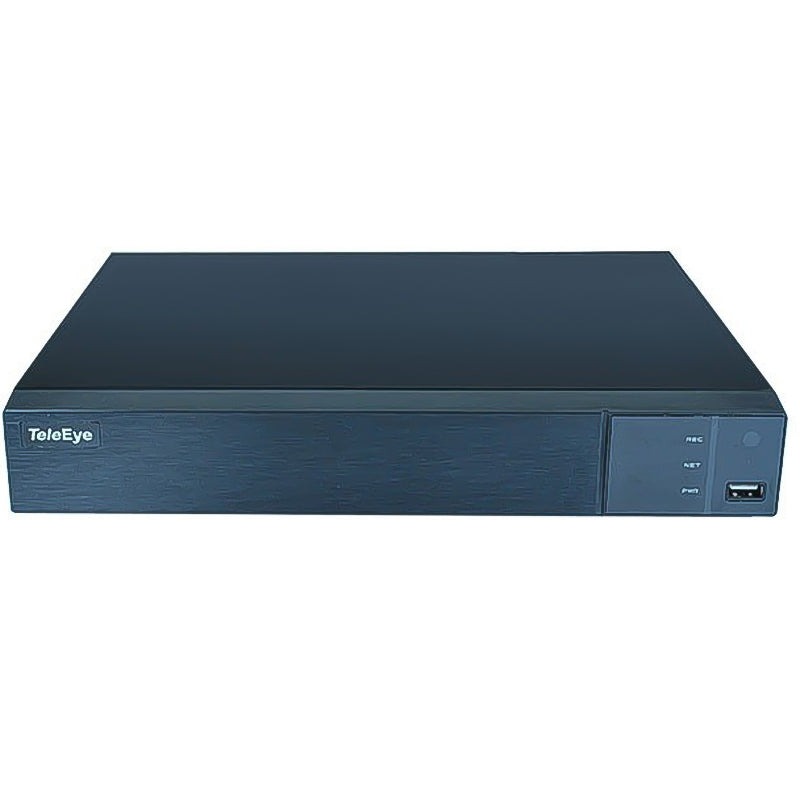

TeleEye JN6508-S 2MP AHD & IP Hybrid DVR

•8CH analog video input, compatible with 5MP/4MP/1080p/720p AHD camera and CVBS input
•4CH IPC input, compatible with 5MP/4MP/3MP/1080p/720p camera
•Supporting sureLINK for dynamic IP Internet connection
•1 SATA HDD, up to 8TB per HDD
•Video management with sureSIGHT
•iView HD for remote monitoring on mobile phones
•H.265 / H.264 compression

This combination does not exist.

Product Specification

ANALOG CAMERA	Compatible with 5MP / 4MP/ 1080P / 720P AHD camera and CVBS input
NO. OF CHANNEL	BNC x 8
IP CAMERA	Compatible with 5MP / 4MP / 3MP / 1080P / 720P IP camera
NO. OF CHANNEL	4
DIGITAL VIDEO	1 channel 1920x1080 / 1280x1024 / 1024x768
VGA	1 channel, 1920x1080 / 1280x1024 / 1024x768
BNC	CVBS (used as the main or spot output)
INPUT	RCA x 8
OUTPUT	RCA x 1
IP CAMERA AUDIO INPUT	4
COMPRESSION	H.265 / H.264
MODE	Manual, Schedule, Motion, Event-driven
HDD TYPE	SATA x1 (Max. 8TB per HDD)
Normal:	1080P@12fps(PAL) / 15fps (NTSC) 720P@25fps (PAL) / 30fps (NTSC) CVBS WD1@25fps (PAL) / 30fps (NTSC)
Lite mode:	5MP Lite(1280x1936)@10fps, 4MP Lite(1280x1440)@12fps(PAL) / 15fps (NTSC), 1080P Lite(960x1080)@25fps (PAL) / 30fps (NTSC)
PLAYBACK	8CH playback, Play, Forward, Backward, Pause, Digital zoom
NETWORK	RJ45 100Mbps × 1
CONCURRENT USER	5
WEB SERVER	Built-in
RS485	RS485 ×1, connect to PTZ or keyboard
USB	USB2.0 × 2
EVENT TYPE	Video motion detection, External alarm, Video loss
ACTION TYPE	Recording, Snap, Email, Preset
ALARM INPUT	8
RELAY OUTPUT	2
VOLTAGE	DC 12V
POWER SUPPLY	DC12V / 2A
MAX. RATING	≤ 12 W (without HDD)
AMBIENT TEMPERATURE	-10°C - 50°C
RELATIVE HUMIDITY	10% - 90%
DIMENSION	300mm (W) x 260mm (D) x 52mm (H)
WEIGHT	1.16kg
