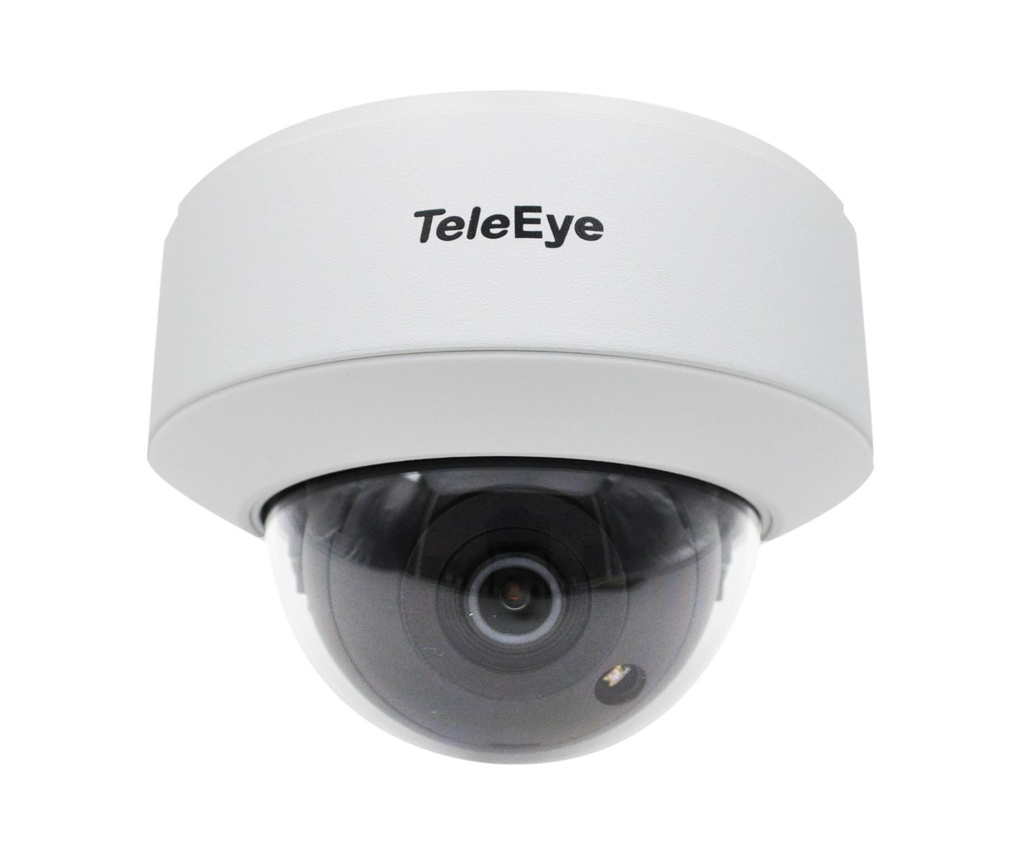

TeleEye MP4022AE 4MP Network IR Fixed Dome with AI Detection

• f=2.8mm fixed lens
• 20-30m IR illumination range
• IP67 & IK10 ingress protection

This combination does not exist.

Product Specification

IMAGE SENSOR	1/3” 4MP CMOS
RESOLUTION	4MP ( 2560×1440 ) , 3MP ( 2304×1296 ), 1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240
FRAME RATE	Up to 25/30fps
MINIMUM ILLUMINATION	0.005 lux @F1.6, AGC ON; 0 lux with IR
IR DISTANCE	20~30M
LENS	f=2.8mm @F1.6 fixed lens
ANGLE OF VIEW	100°
ELECTRONIC SHUTTER	1 / 30 s ~ 1 / 100000 s
VIDEO SETTINGS	ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc
AUDIO INPUT	1CH Audio input or 1CH Built-in MIC
NETWORK INTERFACE	RJ45 × 1, 10M / 100M self-adaption
NETWORK PROTOCOL	TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS
CONCURRENT USERS	4
WEB SERVER	Built-in
ONVIF	Profile S
VIDEO COMPRESSION	H.265 / H.264
VIDEO STREAMING	3 Independent Streams
AUDIO COMPRESSION	G711A/U
AI DETECTION	Face detection; Human detection; Vehicle detection
SMART ALARM	Intrusion detection; Line crossing detection; Video Exception; Motion detection
ACTION	Snap, Recording, Email
ALARM INPUT	1CH
ALARM OUTPUT	1CH
MICRO SD Card	Max. 128GB
VOLTAGE	12VDC
MAX. RATING	<7W
POE	YES, IEEE802.af
AMBIENT TEMPERATURE	-30°C ~ 60°C
RELATIVE HUMIDITY	Less than 95% ( non-condensing )
WATER PROOF	IP67
VANDAL RESISTANT	IK10
DIMENSION	Ф 119 mm x 88mm
WEIGHT	650g
