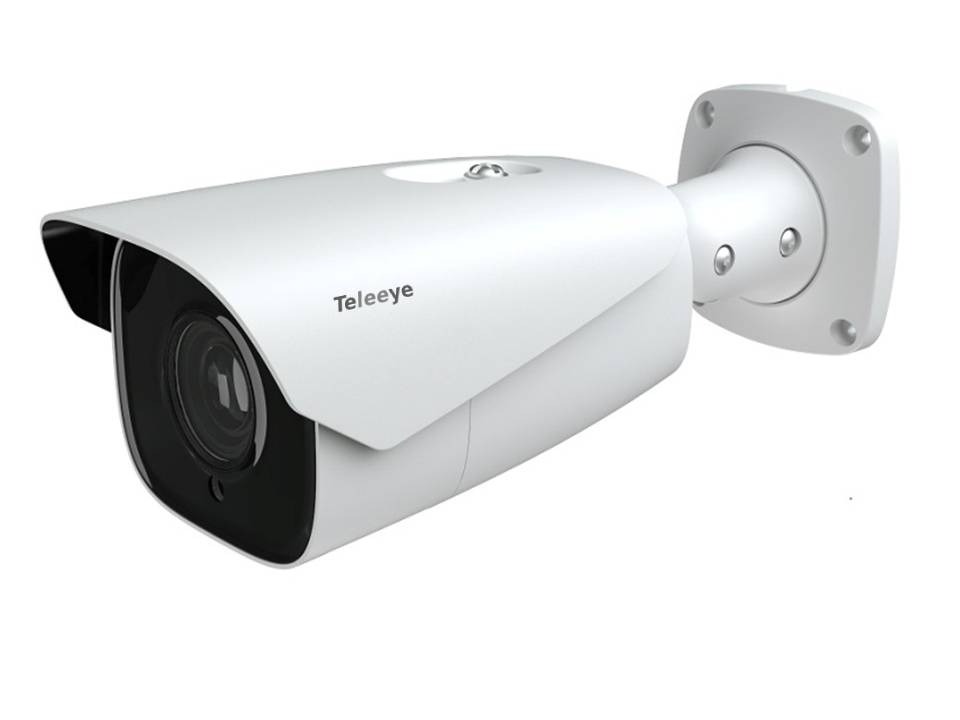

TeleEye MS1120L 2MP Automatic License Plate Recognition Camera

TeleEye MS1120L 2MP Automatic License Plate Recognition Camera

https://www.teleeye.com.ph/web/image/product.template/332/image_1920?unique=fc05f72

• 1/2.8" 2MP Starlight CMOS
sensor
• Electric vari-focal f=2.8mm ~ 12mm
lens Angle of view:
103° ~ 32°
• 50-70m IR illumination range
• H.265 / H.264 compression
• AI Detection: License plate
recognition
• IP67 Weather proof
• Power over Ethernet
• ONVIF Profile S

• 1/2.8" 2MP Starlight CMOS
sensor
• Electric vari-focal f=2.8mm ~ 12mm
lens Angle of view:
103° ~ 32°
• 50-70m IR illumination range
• H.265 / H.264 compression
• AI Detection: License plate
recognition
• IP67 Weather proof
• Power over Ethernet
• ONVIF Profile S

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us


IMAGE SENSOR 1/2.8” CMOS
RESOLUTION 2MP (1920 x 1080) @30fps
FRAME RATE 30fps(60Hz), 25fps(50Hz)
MINIMUM ILLUMINATION 0.005 lux@F1.6, AGC ON; 0 lux with iR; IR distance: 50-70m
IR LED / IR DISTANCE 30~50M
LENS f=2.8mm ~ 12mm@F1.4, motorized zoom lens
ELECTRONIC SHUTTER 1 / 25 s ~ 1 / 100000 s
VIDEO COMPRESSION H.265 / H.264
VIDEO STREAMING 3 Independent Streams
AUDIO COMPRESSION G711A, G711U
NETWORK PROTOCOL TCP / IP, UDP, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS, IPv6
ONVIF Profile S
CONCURRENT USERS Up to 10 users
NETWORK INTERFACE RJ45 × 1 10M/100M
AUDIO INPUT 1CH
AUDIO OUTPUT 1CH
ALARM INPUT 1CH
ALARM OUTPUT 1CH
STORAGE Built-in micro SD card slot; up to 256GB
VOLTAGE 12VDC
MAX. RATING 11W Max
POE Yes
TEMPERATURE -30°C ~ 60°C
WEATHER PROOF IP67
DIMENSION 280mm x 101mm x 89mm
WEIGHT 1050g
