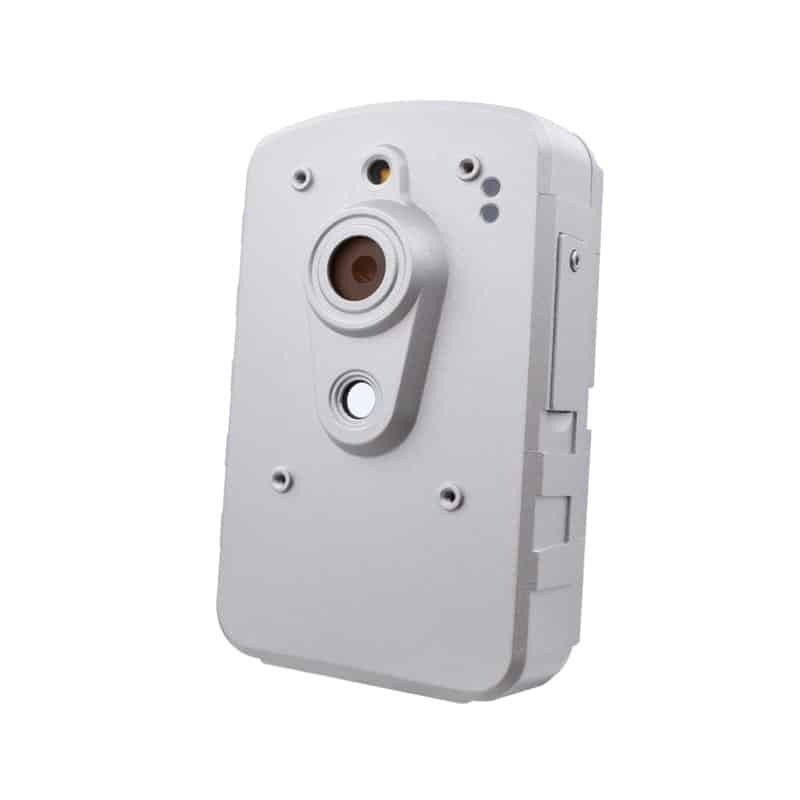

TeleEye MS1300TW – Visible Temperature Camera

• Body Temperature / Over Heat Detection
• Dual Sensors (Visible and Thermal Sensor)
• Max 1 Meter / Tol.±0.5°C
• Detect Range 30°C – 45°C
• With Temperature Indicator
• High Temperature Alarm I/O
• White LEDs Support Manual or Alarm On / Off
• Support PoE
• IP66 Water Proof

This combination does not exist.

IMAGE SENSOR	Uncooled VOx Microbolometer
RESOLUTION	80×60, Progressive Scan; 17 μm
SPECTRAL RANGE	Long wave infrared, 8 μm to 14 μm
FRAME RATE	9fps
ANGLE OF VIEW	H: 51°, V: 38°, D: 64°
THERMAL DISPLAY	B&W / Color / Reverse
TEMPERATURE ACCURACY	Center Temperature: Max 1 Meter / Tol. ±0.5°C (Range 30°C - 45°C)
TEMPERATURE ALARM	Adjustable
IMAGE SENSOR	1/2.8” Sony 2MP CMOS
RESOLUTION	1920 x1080p
FRAME RATE	9fps
MINIMUM ILLUMINATION	Color: 0.1Lux@F1.2, B/W 0.01Lux@F1.2, Sense-up: 0.001Lux@F1.2,
LENS	F=6.0mm
LED WORKING DISTANCE	White LEDs ; 5 Meter, Support Manual or Alarm (On/ Off)
VIDEO SETTING	Brightness, Contrast, Saturation, Sharpness, Noise Reduction, Grayscale
NETWORK INTERFACE	RJ-45
NETWORK PROTOCOL	TCP IP, UDP, HTTP, SMTP, FTP, DNS, DHCP, PPPoE, ARP, UPnP, RTSP, RTP, SNMP,TRAP
WEB SERVER	Built-in
ONVIF	Profile S
VIDEO COMPRESSION	H.264. MPEG4, M-JPEG
MOTION DETECTION	Yes
ALARM OUT	DO
VOLTAGE	12VDC
MAX. RATING	4W
POE	YES
AMBIENT TEMPERATURE	-10°C ~ 50°C
RELATIVE HUMIDITY	Max. RH80%
DIMENSION	72mm × 118mm x 36mm
WEIGHT	450g
