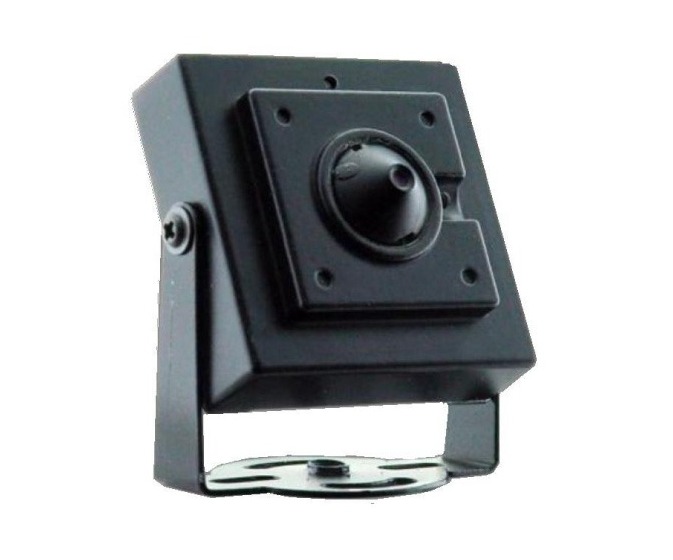

TeleEye PF183Z 1280H Pinhole Camera

• 1/3.2" Sony WDR Starlight CMOS
• Color: 820TVL, 1280H
• Powerful WDR (75dB)
• f=2.5mm Pinhole lens (View Angle: 88°)

This combination does not exist.

Product Specification

IMAGE SENSOR	1/3.2" Sony WDR STARVIS CMOS
RESOLUTION	1280(H) x 960(V) Color: 820TVL, B/W: 850TVL
VIDEO OUTPUT	50/60 fps / 1.0Vp-p Composite, 75ohm(BNC)
MINIMUM ILLUMINATION	Color: 0.05Lux / F1.4, B/W: 0.03Lux / F1.4
LENS	f=2.5mm/F2.2 Pinhole Fixed lens
VIEW ANGLE	88
ELECTRONIC SHUTTER	Auto (1/50(60)~1/10000(S))/ Manual (1/50(60)~1/100000(S))
SIGNAL TO NOISE RATIO	More than 55dB(AGC off)
WIDE DYNAMIC RANGE	75dB
OSD MENU	Built-in
DAY/NIGHT	MODE Day / Night / Auto
AUTOMATIC GAIN CONTROL	Auto (10Steps)
WHITE BALANCE	ATW / Push / User1 / User2 / Manual / push lock
BACK LIGHT COMPENSATION	HLC / BLC / Off
DEFOG	Auto / Off
DIGITAL NOISE REDUCTION	Y / C DNR (Level 1~7)
PRIVACY ZONE	On / Off (16 Zones Programmable, Mosaic)
VOLTAGE	12VDC
MAX. RATING	0.75W
AMBIENT TEMPERATURE	-10°C ~ 50°C
RELATIVE HUMIDITY	Max. RH80%
DIMENSION	41(W) x 44(H) x 25(D) mm
WEIGHT	95g
