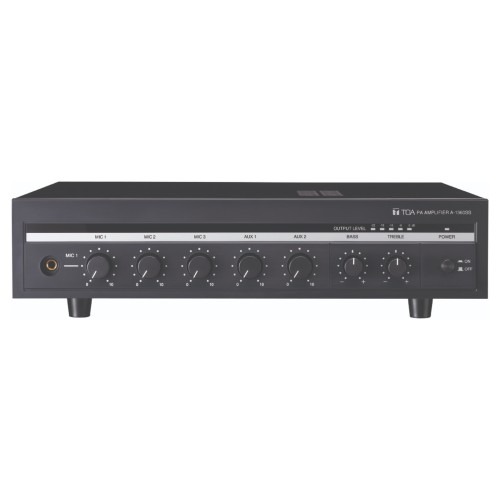

TOA A-1360SS Mixer Power Amplifier

TOA A-1360SS Mixer Power Amplifier is a high-performance mixer power amplifier with a 5-zone speaker selector that is suitable for public address broadcasting or background music usage.

The TOA PA amplifier a-1360ss all-call button allows broadcasting to be made to all 5-zones. They also come with output short circuit protection, and thermal protection circuitry to prevent failure due to overheating.

This combination does not exist.

Product Specification

Power Source	230 V AC, 50/60 Hz
Rated Output	240 W
Power Consumption	252 W (IEC60065)
Frequency Response	50 Hz – 18,000 Hz (±3 dB)
Distortion	Less than 0.3 % at 1 kHz, 1/3 rated power
MIC 1	-52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack
MIC 2	-52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack
MIC 3	-52 dBV (2.5 mV), 600 Ω, unbalanced, Equivalent to phone jack
AUX 1	-10 dB* (316 mV), 10 kΩ, unbalanced, RCA pin jack
AUX 2	-10 dB* (316 mV), 10 kΩ, unbalanced, RCA pin jack
Speaker Out	Speaker Outputs plug in screw connector
Speaker Selector	5-zone selector (all zones simultaneously selectable), plug-in screw, 1 all call
Pre Out	0 dBV (1.0 V), 600 Ω, unbalanced, RCA pin jack
S/N Ratio	Over 65 dB (MIC 1 – MIC 3), Over 75 dB (AUX 1 – AUX 2)
Tone Controls	Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Muting	MIC 1 overrides other input signals with 0 – 40 dB attenuation by voice switch of MIC 1 input level
Indicators	Power LED, Signal LED
Finish	Front Panel: ABS resin, Color Black, Case: Steel plate, Painting Black
Dimensions	420 (W) × 110 (H) × 384 (D) mm
Weight	12.8 kg
Accessory	AC Power cord (1 pc)
