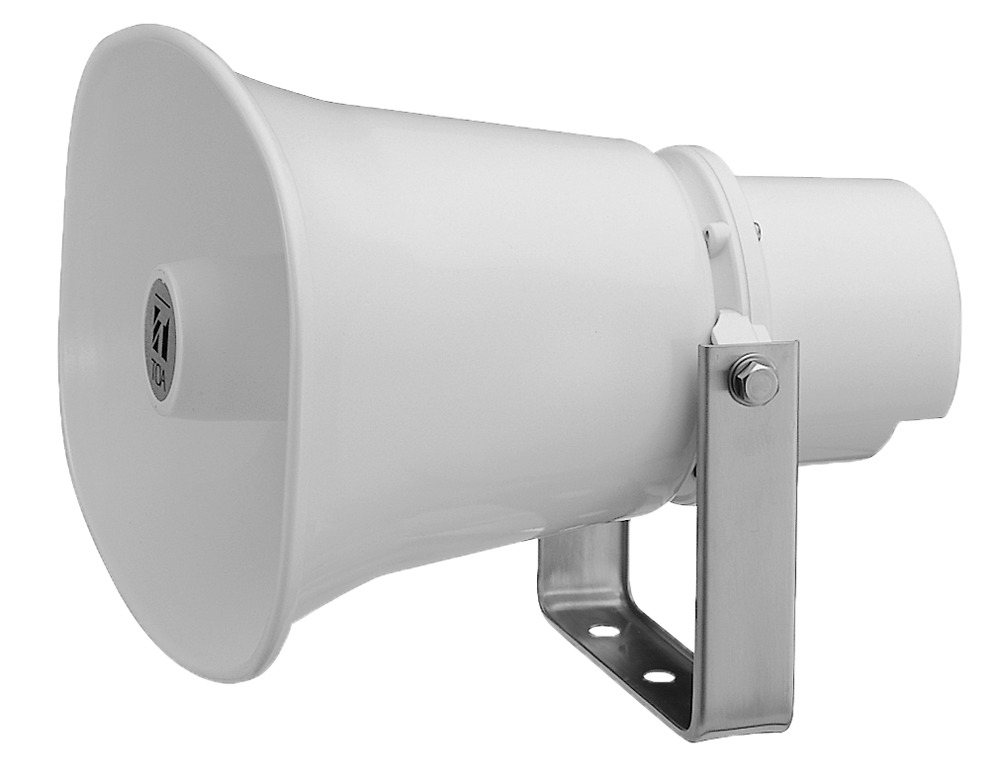

TOA SC-630M Paging Horn Speaker

TOA SC-630M Paging Horn Speaker

https://www.teleeye.com.ph/web/image/product.template/445/image_1920?unique=fc05f72

The SC-630M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.

The SC-630M is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability.

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us

Product Specification


Rated Input 30 W
Line Voltage 100 V line or 70 V line
Rated Impedance 100 V line: 330 Ω (30 W), 670Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) , 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
Sound Pressure Level 113 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response 250 Hz - 10 kHz
Dust/Water Protection IP65
Polarity Hot: Black, Com: White
Operating Temperature -20 ℃ to +55 ℃ (must be free from dew condensation)
Horn flare Aluminum, off-white, powder coating
Reflector horn and rear cover ABS resin, off-white
Bracket, screws and bolts Stainless steel
Speaker cable Polyvinyl chloride insulated cabtyre cable (6 mm in diameter, 600 mm in length)
Dimensions 285 (W) × 227 (H) × 277 (D) mm
Weight 2 kg
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
