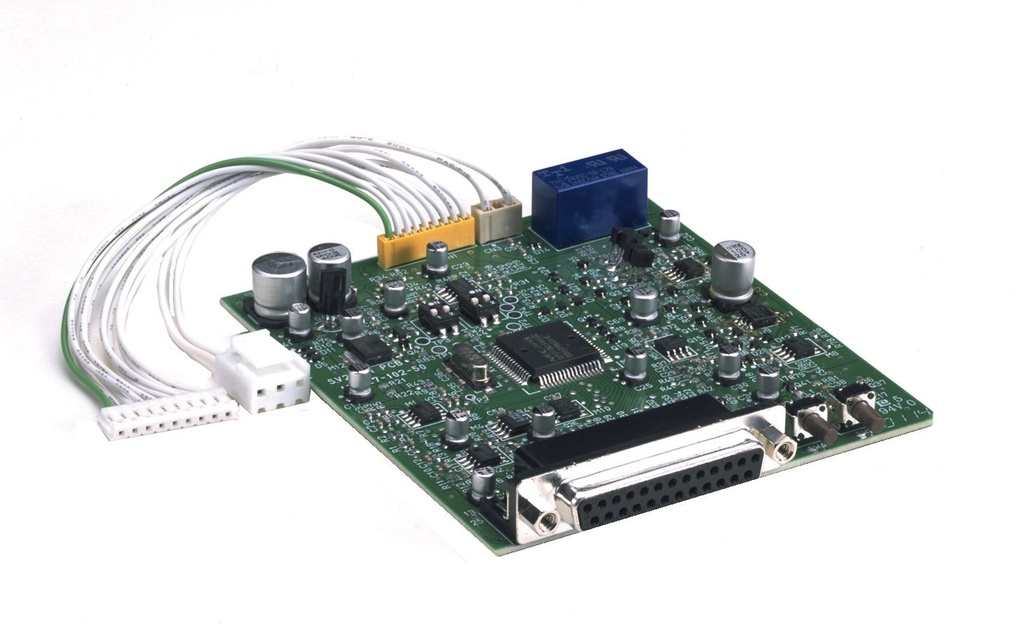

TOA SV-200MA Surveillance board

https://www.teleeye.com.ph/web/image/product.template/398/image_1920?unique=e1ee7c8

Designed to be built in the VM-2120/-2240 amplifiers, the SV-200MA permits monitoring of individual speaker lines and the power amplifier.

• For VM-2000
• Surveillance of power amplifier
• Impedance surveillance of speaker lines
• Selectable check period 10 - 60 minutes.
• Control outputs for status of each line and amplifier
• Control inputs for de-activating each speaker output
• Initialise and check button (impedance)

This combination does not exist.

Contact Us

Product Specification


table> Applicable model VM-2000 Power source 24 V DC provided by VM-2000 Current consumption (value) 120 mA Control input Speaker line check, impedance initialisation. No-voltage make contact, open voltage: 3.3 VDC, short circuit current: under 1 mA Control output Per speaker line: short, break; amplifier fault; earth leakage; initialisation busy; initialisation error. Open-collector: withstand voltage: 30 VDC, control current: less than10 mA Input / Output Per zone: zone status (output), de-activate zone (input); attenuator bypass status (output), de-activate (input), external SP input status (output), de-activate (input). Inputs: no-voltage make contact input, open voltage 24 VDC, max. current 60 mA. Outputs: open collector, withstand voltage 24 VDC, max. 20 mA Connection 25-pin sub-D terminal, female. Cable set for connections inside VX-2000. Current consumption 120 mA Operating temperature 0 - 50 °C Dimensions 90 x 20.6 x 157 mm (W x H x D)
