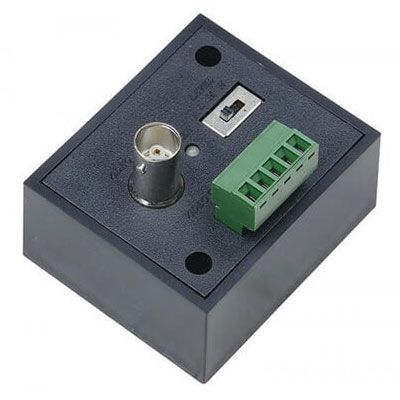

UTP Active Transmitter

UTP Active Transmitter

https://www.teleeye.com.ph/web/image/product.template/501/image_1920?unique=a7fcbc2

• To send HD-TVI signal up to 300M over UTP cable.
• To send AHD signal up to 400M over UTP cable.
• To send HDCVI signal up to 500M over UTP cable.
• To work with passive receiver TTP111HD for a good quality picture.
• Support resolution up to 1080p and 4K.
• Built-in L, M, and H high-frequency video gain.
• Built-in transient protection and ground lifting, damaging voltage spike problems are eliminated.
• Work with HD-TVI, AHD, HDCVI UTP active transmitter for longer distance.
• Optional model: TPN008 19” 2U rack mounting panel to fit 8 pieces TTA111HDR.

• To send HD-TVI signal up to 300M over UTP cable.
• To send AHD signal up to 400M over UTP cable.
• To send HDCVI signal up to 500M over UTP cable.
• To work with passive receiver TTP111HD for a good quality picture.
• Support resolution up to 1080p and 4K.
• Built-in L, M, and H high-frequency video gain.
• Built-in transient protection and ground lifting, damaging voltage spike problems are eliminated.
• Work with HD-TVI, AHD, HDCVI UTP active transmitter for longer distance.
• Optional model: TPN008 19” 2U rack mounting panel to fit 8 pieces TTA111HDR.

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us
Accessories

Product Specification


Video Format HD-TVI, HDCVI
Video Input BNC x 1 (75 Ω，1 Vp-p)
Video Output 5 pin removable terminal x 1 (100 Ω)
Switch Slide switch (3 level) x 1/td>
Cable UTP CAT5e/CAT6
Wire Category CAT2~CAT6
Transmission Distance Up to 1080P 300M, 4MP/5MP 500M
Power Supply DC 12V 500mA
Power Consumption 70 mA ( Max)
Temperature Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%
Dimensions 57.8 × 49.2 × 41.7mm
Weight 70g
