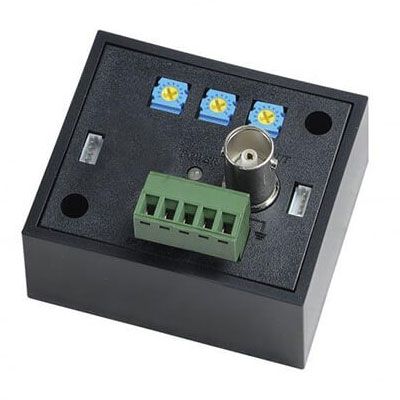

TTA11HDR1 HD-UTP Active Receiver

TTA11HDR1 HD-UTP Active Receiver

https://www.teleeye.com.ph/web/image/product.template/500/image_1920?unique=fc05f72

• HD-TVI, AHD, HDCVI UTP active receiver.
• To work with passive transmitter TTP111HD for a good quality picture.
• Support HD-TVI/AHD/HDCVI 1080p/4K.
• Work with HD-TVI, AHD, HDCVI UTP active transmitter for longer distance.
• Built-in middle frequency, high frequency, and brightness adjustment.
• Allow using one power adapter for multiple amplifiers, a jumper is needed to extend power. ( Max of 5 units per power adapter)
• Package includes a jumper and power adapter.

• HD-TVI, AHD, HDCVI UTP active receiver.
• To work with passive transmitter TTP111HD for a good quality picture.
• Support HD-TVI/AHD/HDCVI 1080p/4K.
• Work with HD-TVI, AHD, HDCVI UTP active transmitter for longer distance.
• Built-in middle frequency, high frequency, and brightness adjustment.
• Allow using one power adapter for multiple amplifiers, a jumper is needed to extend power. ( Max of 5 units per power adapter)
• Package includes a jumper and power adapter.

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us
Accessories

Product Specification


Video Format HD-TVI, HDCVI
Video Input 5 pin removable terminal x 1 (100 Ω)
Video Output BNC x 1 (75 Ω，1 Vp-p)
Cable UTP CAT5e/CAT6
Transmission Distance AHD / HDCVI：400M, 1080p，HD-TVI：300M, 1080p, 4MP/5MP: 500M
Power Supply DC 12V 500mA
Power Consumption 150mA(Typical), 220mA (Max)
Environmental Specifications Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%
Dimensions 57.8 × 49.2 × 43.7
Weight 70g
