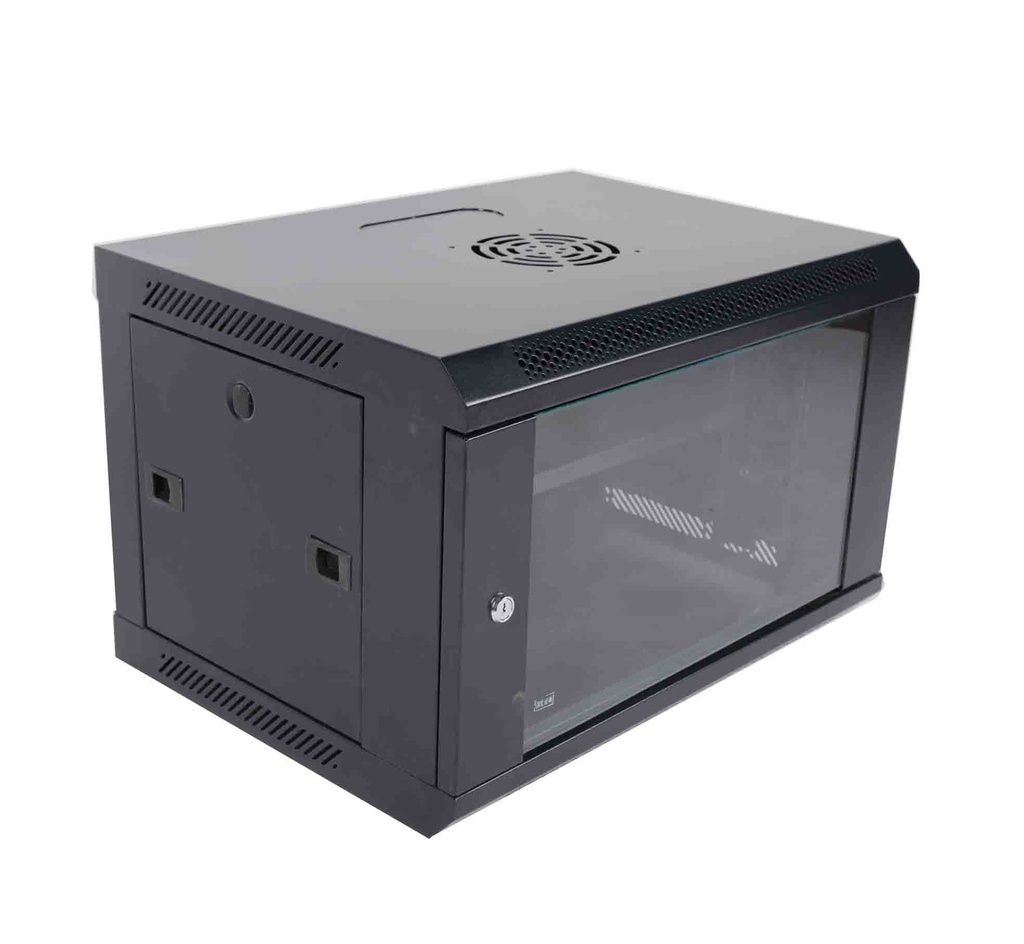

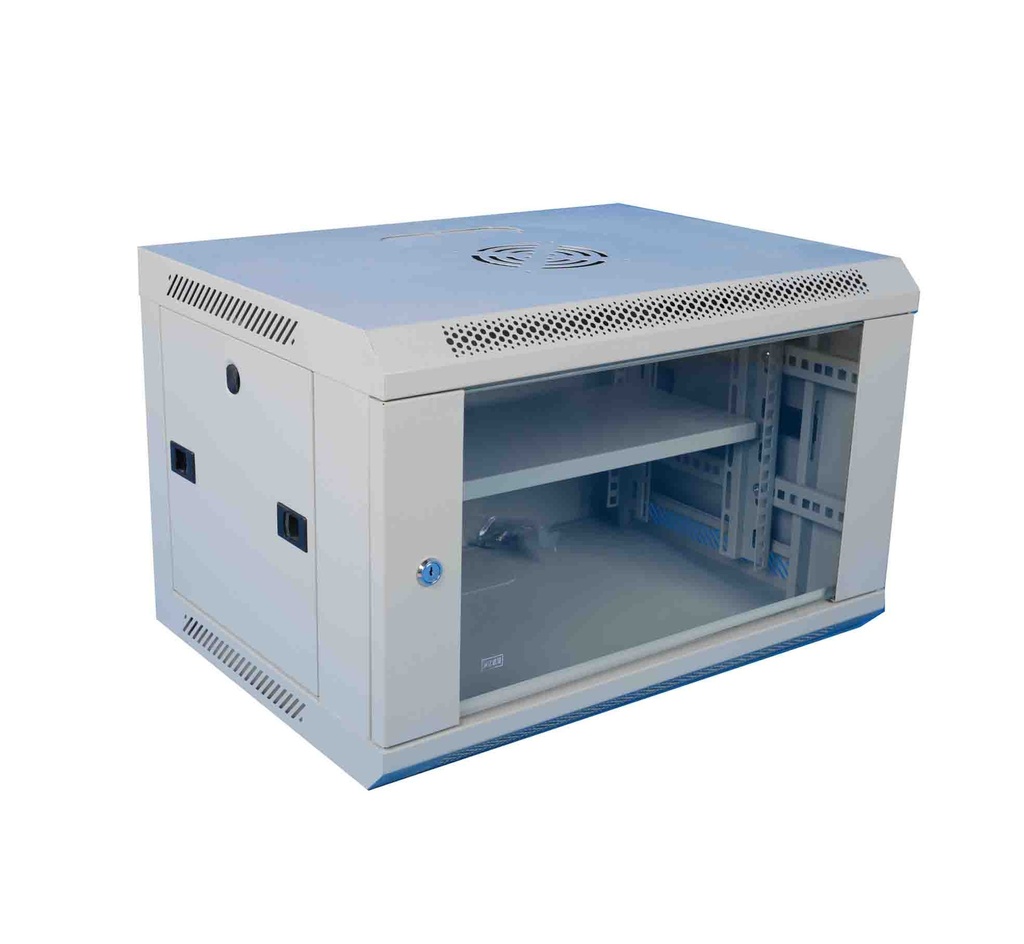

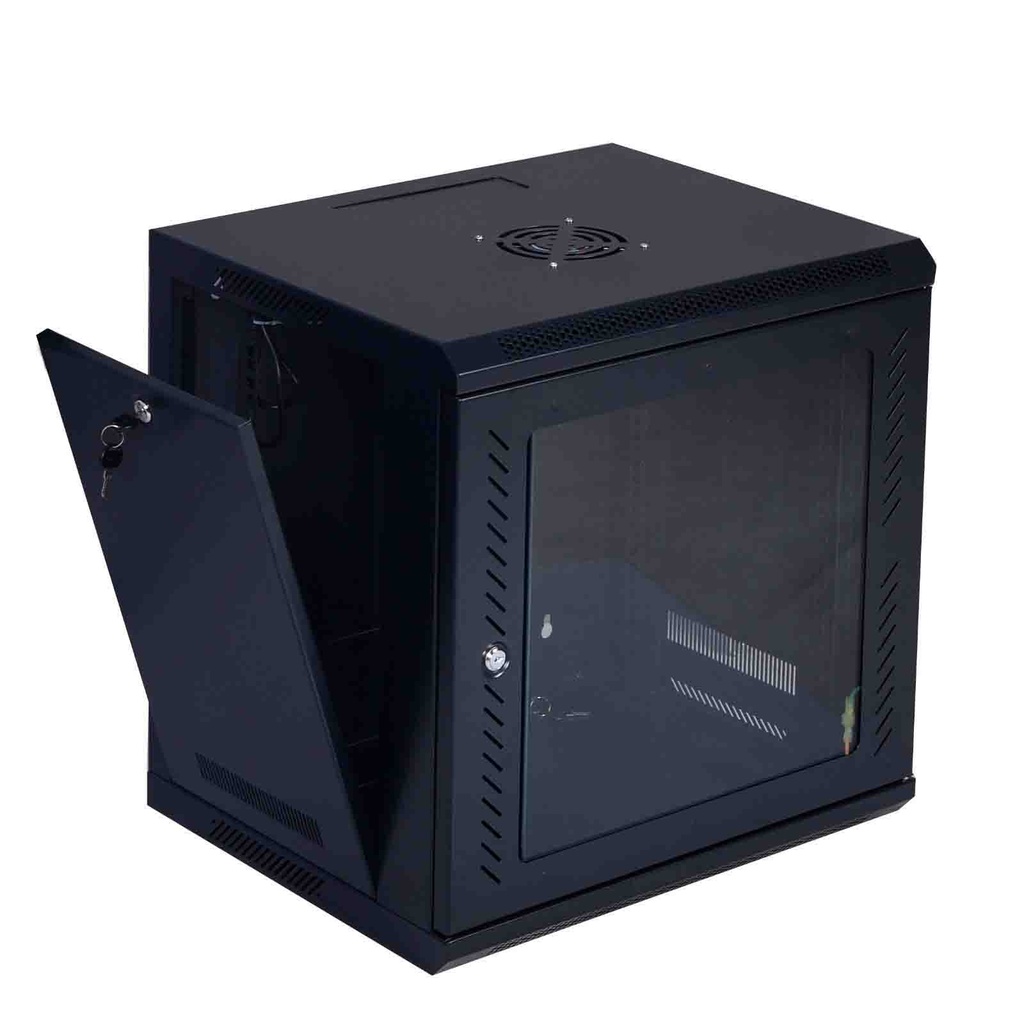

Wall Mounted Data Cabinet

https://www.teleeye.com.ph/web/image/product.template/509/image_1920?unique=fc05f72

• 19'' wall mounted cabinet rack
• Removable side panels (lockable)
• Static Loading Capacity: 60kg
• Flat packing and assembly packing are optional

• 19'' wall mounted cabinet rack
• Removable side panels (lockable)
• Static Loading Capacity: 60kg
• Flat packing and assembly packing are optional

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us
Data Cabinet Wall Mount IDF Cabinet

Product Description



Specification:


Capacity Width(mm) Depth (mm) Assembled Packing (CBM)
6U 600 600 0.15
9U 600 600 0.2
12U 600 600 0.25
15U 600 600 0.31
18U 600 600 0.36


Description:

● Standard: Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard.
● Compatible with metric ETSI and 19 inch international standard.
● Material: SPCC Cold rolled steel.
● Material Thickness: Mounting profile: 2.0mm, Others: 1.0mm
● Loading Capacity: 80kg
● Protection grade: IP20
● Surface Finish: Degreasing, Pickling, Phosphating, Powder Coating
● Color: RAL9004(Black), RAL7035(Grey white)



Advantages:

● Secure, firm and reliable
● Easy to maintain equipment
● Two Packing Ways:
    1. Assembly packing to save labour cost, ready to resell or use
    2. Disassembly packing to save space and transport cost, easy to assemble
● Certification: ISO 9001:2000
● OEM/ODM service available
