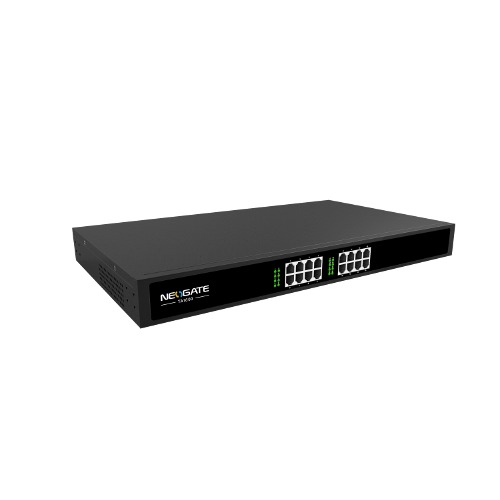

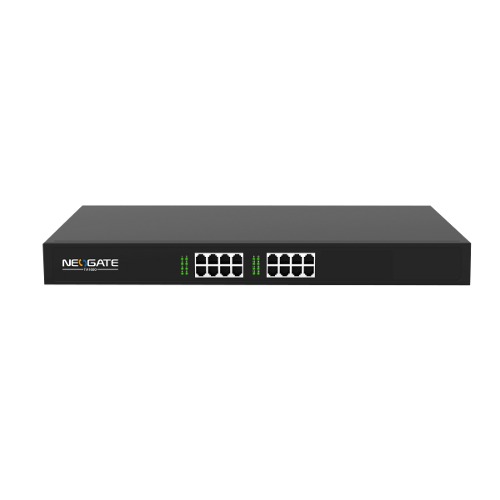

Yeastar NeoGate TA1600

https://www.teleeye.com.ph/web/image/product.template/619/image_1920?unique=fc05f72

• Fully compliant with SIP and IAX2
• Flexible calling rules
• Reliable fax performance with T.38
• Provides high-quality voice compression with industry standard codecs
• Line echo cancellation for 32, 64 or 128 ms echo delays
• Web-based GUI for easy configuration and management
• Excellent interoperability with a wide range of legacy and IP equipment

• Fully compliant with SIP and IAX2
• Flexible calling rules
• Reliable fax performance with T.38
• Provides high-quality voice compression with industry standard codecs
• Line echo cancellation for 32, 64 or 128 ms echo delays
• Web-based GUI for easy configuration and management
• Excellent interoperability with a wide range of legacy and IP equipment

0.00 ₱ 0.00 ₱

This combination does not exist.

Contact Us

Product Specification


Ports 16/24/32 FXS Ports
Telephony Interfaces RJ11 and RJ21 50-pin Telco Connectors
WAN 1 10/100Mbps
LAN 1 10/100Mbps
Indicators Ports Status and Activity LEDs
Protocol SIP (RFC3261), IAX2
Transport UDP, TCP, TLS, SRTP
Codec G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A/B, GSM, ADPCM
Voice Capability ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, PLC
DTMF Mode RFC2833, SIP Info, In-band
Fax T.38 and Pass-through
QoS DiffServ, ToS, 802.1 P/Q VLAN tagging
Call Handling 3-way Conference, Attended and Blind Transfer, Call Forward, Caller ID Display, Call Waiting, CDR, Direct Caller ID Calling, Distinctive Ringtone, Do Not Disturb, Flexible Dialing Plan, Hunting Groups, Hotline, MWI, Speed Dial
Firewall Built-in Firewall, IP Blocklist, Attack Alert
Network DHCP, DDNS, OpenVPN, Static Route, VLAN
Nat Traversal Static NAT, STUN
Network Protocol FTP, TFTP, HTTP, HTTPS, SSH
Provisioning Web GUI, Auto Provisioning, Backup and Restore, Firmware Upgrade by HTTP/TFTP
Configuration Remote Management*, Packet Capture, System Logs, Voice Menu for FXS Gateways Basic Configuration, API
Signaling FXS Loop Start, FXS Kewl Start
Caller ID BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal
Short & Long Haul 3REN, up to 1.5 km on 24 AWG wire
Power AC 100-240V (12V 5.5A)
Dimensions 440 × 250 × 44
Operation Temperature 0°C to 40°C, 32°F to 104°F
Storage Temperature -20°C to 65°C, -4°F to 149°F
Humidity 10-90% non-condensing
Mounting Desktop, Rack-mount
Softswitch and IP-PBX Interoperable with a wide range of IPPBX and softswitches



Download Center

Datasheet


User Manual
