Structured cabling is all about creating a flexible network of cables that can handle both your current and future hardware needs. This means your system can grow and adapt as technology advances.

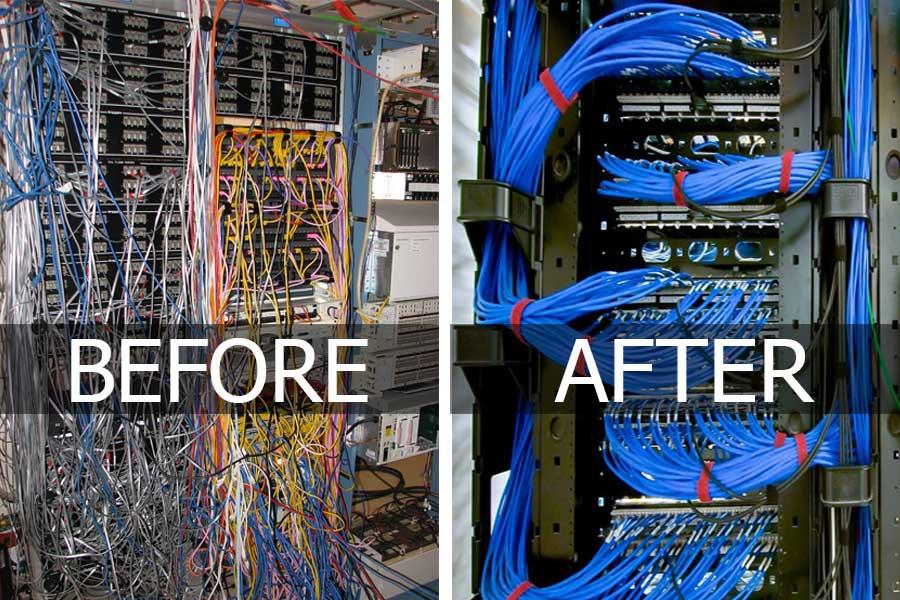

The design and installation of structured cabling follow industry standards and cover everything from connecting data centers and offices to apartment buildings. It involves various types of cables like Category 5e (Cat 5e), Category 6 (Cat 6), and fiber optics, along with modular connectors. These standards also provide guidance on how to organize the cabling, often using a central patch panel to manage connections efficiently.

When it comes to data connections, you usually just need straightforward patch cables to link computers to network switches. In voice systems, it's a bit more complex, especially outside of North America, where you may need an adapter to connect to the local telephone socket. In North America, the plugs used for RJ11 and RJ14 telephone connections are compatible with the larger 8P8C socket, eliminating the need for an adapter. However, it's worth noting that RJ25 and RJ61 connections are physically compatible but not electrically compatible and cannot be used.
