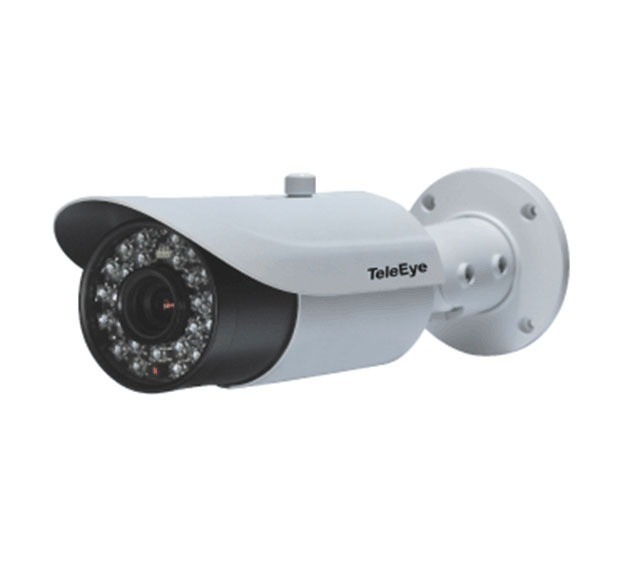

TeleEye MP877AE – HD 4K IR Electric Vari-Focal Bullet

• 4K IR Bullet
• 1/2.5″ 8MP SONY CMOS sensor
• Max. resolution: 3840 × 2160
• H.265 / Enhanced H.264 compression
• Electric vari-focal
• f=3.3mm ~ 12mm lens
• Angle of view: 97.5° ~ 38.5°
• 30-50M IR illumination range
• IP66 Weather proof
• Power over Ethernet
• ONVIF Profile S

This combination does not exist.

Product Specification

IMAGE SENSOR	1/2.5” 8MP SONY CMOS
RESOLUTION	8MP ( 3840×2160 ), 1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480x240
FRAME RATE	Up to 25/30fps
MINIMUM ILLUMINATION	0.01 lux @F1.2, AGC ON; 0 lux with IR
IR Distance	30~50M
LENS	f=3.3mm ~ 12mm motorized lens
ANGLE OF VIEW	97.5° ~ 38.5°
ELECTRONIC SHUTTER	1 / 25s ~ 1 / 100000s
VIDEO SETTINGS	ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc.
ANALOG VIDEO OUTPUT	CVBS video output ( BNC × 1)
INPUT	1CH
OUTPUT	1CH
NETWORK INTERFACE	RJ45 × 1, 10M / 100M self-adaption
NETWORK PROTOCOL	TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
CONCURRENT USERS	10
WEB SERVER	Built-in
ONVIF	Profile S
VIDEO COMPRESSION	H.265 / Enhanced H.264
VIDEO STREAMING	3 Independent Streams
MOTION DETECTION	Yes
ACTION	Snap, Recording, Alarm output, Email
ALARM INPUT	1
ALARM OUTPUT	1
TF Card	Max. 128GB
VOLTAGE	12VDC
POWER MAX.	RATING 8W
POE	YES
AMBIENT TEMPERATURE	-20°C ~ 50°C
RELATIVE HUMIDITY	10%-90%
WEATHER PROOF	IP66
DIMENSION	Φ109mm× 284mm
WEIGHT	1200g
