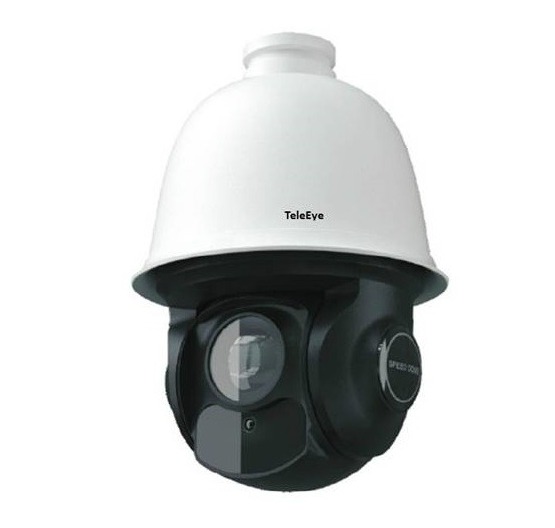

TeleEye MQ6231 - HD 4MP 30x Optical Zoom IR Speed Dome

https://www.teleeye.com.ph/web/image/product.template/351/image_1920?unique=536a966

• 1/2.5" 4MP Progressive CMOS
Sensor
• Max. Resolution: 2560x1440
@20/30fps
• 30x Optical Zoom
• 100M IR Distance
• H.265 / Enhanced H.264
Compression
• IP66 Weather Proof
• TVS 6KV Lightning Protection,
Surge Protection

This combination does not exist.

Contact Us

Product Specification


IMAGE SENSOR 1/2.5" 4MP Progressive CMOS
MAX. RESOLUTION 2560×1440
FRAME RATE Up to 30fps
MINIMUM ILLUMINATION Color 0.01Lux @ (F1.5 AGC ON); B/W 0.002Lux @(F1.5 AGC ON); 0.0Lux, IR ON; ~100M IR distance
LENS 30x Optical zoom, f=4.7mm ~141mm, F1.6~F4.4
VIEW ANGLE 62.5°~ 2.1°
ELECTRONIC SHUTTER Auto/ Manual (1/1~1/100000s)
INPUT 1CH
OUTPUT 1CH
PAN RANGE 360° endless rotation
PAN SPEED Preset speed: 150°/s; Manual control speed: 0.1 ~ 80°/s
TILT RANGE -3°~ 93°
TILT SPEED Preset speed: 120°/s; Manual control speed: 0.1 ~ 80°/s
PRESET 360
CRUISE 8
TRACK 4
TIME TASK 8
SCAN 2
HOME POSITION Yes
OSD MENU English
NETWORK INTERFACE RJ-45
NETWORK PROTOCOL HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP,DHCP, PPPoE
WEB SERVER Built-in
ONVIF Profile S
VIDEO COMPRESSION H.265 / Enhanced H.264
VIDEO STREAMING 3
ALARM INPUT 1
ALARM OUTPUT 1
TF CARD Max. 128GB
POE PoE+ (802.3.at, class3)
POWER SUPPLY DC24V / 2500mA
MAX. RATING 30W(IR on)
AMBIENT TEMPERATURE -30°C ~ 60°C
RELATIVE HUMIDITY ≤ 95%
WEATHER PROOF IP66
PROTECTION LEVEL TVS 6KV lightning protection, surge protection
DIMENSION 209 x 328mm
WEIGHT 3.8Kg



Download Center

Datasheet
