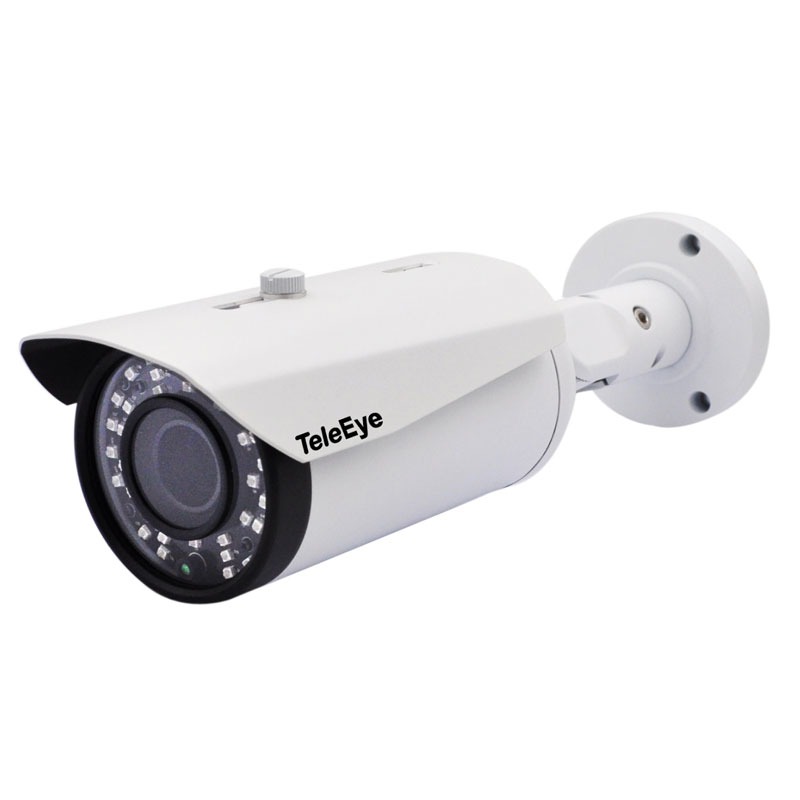

TeleEye MS1500L Automatic License Plate Recognition Camera

• Build in Vehicle Detector
• Self Deep Learning Technology
• f=2.8~12mm Vari-Focal Lens
• Recognition Distance: 0.1m ~ 6m
• Support PoE

This combination does not exist.

Product Specification

IMAGE SENSOR	Progressive scan CMOS
RESOLUTION	1920 x 1080
FRAME RATE	25 / 30fps
MINIMUM ILLUMINATION	0.05 lux
LENS	f=2.8 ~ 12mm vari-focal lens
ELECTRONIC SHUTTER	NTSC: 1/30 ~ 1/100,000s; PAL: 1/25 ~ 1/100,000s
VIDEO COMPRESSION	H.265 / H.264
VIDEO STREAMING	Dual Stream
AUDIO COMPRESSION	G711A, G711U, AAC
NETWORK PROTOCOL	TCP / IP, UDP, SMTP, PPPoE, DwDNS, SNTP, DHCP, FTP, UPnP, RTSP, HTTPS, IPv6
ONVIF	Profile S
CONCURRENT USERS	10
NETWORK INTERFACE	RJ45 × 1 10M / 100M
AUDIO INPUT	1CH
AUDIO OUTPUT	1CH
ALARM INPUT	1CH
ALARM OUTPUT	1CH
LICENSE PLATE RECOGNITION	Country Dependence; Alpha & Numeric
RECOGNITION DISTANCE	0.1m ~ 6m
MAXIMUM DETECTION	OF
VEHICLE SPEED	< 50km/h
LPR FUNCTIONS	License plate detection, Character Extraction, Character= Recognition & Format Recognition
ACCURACY	Close to 99%
RECOGNITION FRAME RATE	LPR: 30 FPS(Do not see license plate number) 21 FPS(See license plate number)
RECOMMENDED APPLICATIONS	Carpark, Toll Gates, One-way traffic roads Automatic Gates (Go with WS series of DVR Only)
VOLTAGE	12VDC
MAX. RATING	3W Max
POE	Yes
OPERATING TEMPERATURE	-30°C ~ 45°C
DIMENSION	231mm x 84mm x 110mm
WEIGHT	820g
